UGREEN Revodok 105

Can a USB-C hub for under £15 perform multiple tasks? Is your current laptop setup leaving you feeling short-changed? Craving a cinematic experience on your laptop? Let’s get to the review for the UGREEN Revodok 105.

Unleash the full potential of your laptop with the UGREEN Revodok 105, a compact powerhouse that expands your connectivity.

Never worry about running out of juice again. The Revodok 105 features a 100W USB-C PD pass-through charging port, delivering fast and efficient charging for your laptop at home, in the office, or on the go.

Experience stunning visuals on an external monitor with the crystal-clear 4K HDMI port. The Revodok 105 supports resolutions up to 4K at 30Hz, ensuring every detail is razor-sharp and colours pop with vibrancy.

Stop wasting time waiting for files to transfer. The Revodok 105 boasts a blazing-fast 5 Gbps USB-A 3.0 port, allowing you to move data to and from your laptop in seconds.

Need to connect your keyboard, mouse, or other peripherals? No problem! The Revodok 105 includes three USB-A ports, providing ample connections for all your essential devices.

This versatile adapter works seamlessly with almost any USB-C device, including MacBook Pro, MacBook Air M1/M2, smartphones, tablets, iMac, iPad Pro, and various laptops from brands like Galaxy, Chromebook, Surface, XPS, ThinkPad, and more.

(Note: When using the Revodok 105 with a phone or tablet for charging, a separate PD charger is required.)

Packaging and Contents.

The UGREEN Revodok 105 comes packaged in a white sleeved box which shows product images and specifications printed on it. The box measures 19.5cm x 11.0cm x 1.7cm and weighs 96G.

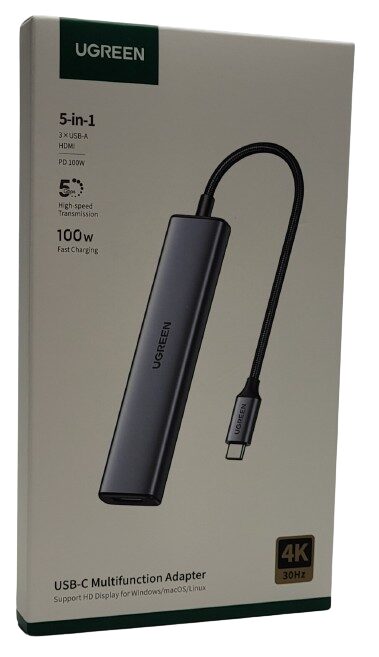

Image shows the outer packaging for the UGREEN Revodok 105.
Outer Packaging – Image Source – My Helpful Hints (Subject to Copyright)

Inside the box you’ll find the following: 1x Adapter, and 1x Multi-Lingual User Guide.

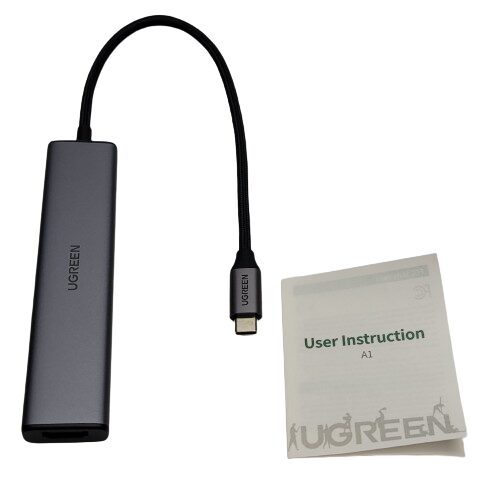

Image shows the included contents in a laid out position.
Contents Image – Image Source – My Helpful Hints (Subject to Copyright)

UGREEN Revodok 105.

The UGREEN Revodok 105 measures 121.8mm x 27.5mm x and weighs 54.5G. The attached USB-C cable measures 24.0cm in length, and is the usual high-quality braided type cable you come to expect from UGREEN.

The hub UGREEN sent me is grey in colour, but you have a choice between blue, purple or white too.

I’ll link the colour choices below for your convenience.






The UGREEN Revodok 105 has 5 separate ports. I’ll tell each port and what they’re able to achieve below.

  • USB-A (2.0): You get 2x USB-A 2.0 ports. You’re able to enjoy transfer rates of up to 480Mbps on these ports, ideal for your peripheral item such as keybords, mice, printers etc.
  • USB-A (3.0): You get a single USB-A 3.0 port. Enjoy super-fast 5Gbps transfer speed, ideal for USB flash drives.
  • HDMI: A single HDMI port providing upto 4K@30Hz picture quality, ideal for TV, a monitor or projector.
  • USB-C (Pass-Through): You get a single USB-C pass-through port, ideal to provide a PD 3.0, 100W maximum power supply (this port does not support data/video streaming).

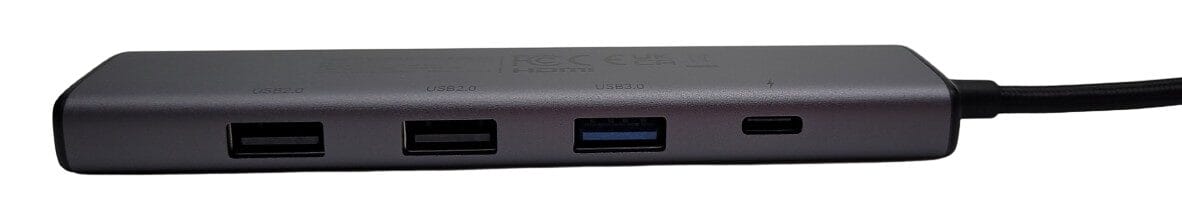

Image shows the ports of the UGREEN Revodok 105.
Ports Image – Image Source – My Helpful Hints (Subject to Copyright)

The UGREEN Revodok 105 is compatible with Windows/macOS and Linux operating systems.

The HDMI port supports mirror and extended mode. Pleade ensure the USB-C port of your laptop supports video output.

Technical Specifications.

  • Brand: UGREEN
  • Model: Revodok 105
  • Manufacturer Code: CM478
  • Manufacturer Reference: 15495
  • EAN: 6914876214952
  • Input: 1x USB-C
  • Output: 3x USB-A, 1x HDMI
  • Video: HDMI up to 4K@30Hz
  • USB-A 3.0: Supports transfer rate of up to 5Gbps.
  • USB-A 2.0: Supports transfer rate of up to 480Mbps.
  • Power Supply: Supports PD 3.0, 100W max
  • Compatible Systems: Windows/macOS/Linux
  • Compliance: CE, UKCA, FCC


I’m very impressed with the UGREEN Revodok 105. It’s a simple USB-C/USB-A hub that is more suited to those with 2 or more peripheral items and wish to enjoy 100W pass-through charging.

You can easily expand your single USB-C port on your laptop with 3 additional USB-A and a single HDMI port.

Overall, a great piece that feels high-quality too, another fantastic UGREEN product, and an absolute bargain too!

If you’d like to purchase this item, please check out the purchasing options below. The RRP for this item is £16.99.



Klarna Available

Direct Purchase


Prime Delivery

Best Option

Stock Available

5-Star Rating


Free Delivery

More Expensive

Low Stock

Product sample provided by UGREEN in exchange for a detailed, unbiased review.
