King Do Way Table Fan WY-F4

The King Do Way Table Fan WY-F4 is a portable and rechargeable fan. You can also use the supplied water bottle to fill up the fan with water and get a nice, cooling spray of mist in the hot summer months.

This fan maybe small in size but can produce excellent air circulation and also has 2 different fan speeds.

You get an in-built 2000mAh rechargeable battery, that when charged can operate for around 3-5 hours (Depending on speed settings)

Packaging and Contents.

The King Do Way Table Fan WY-F4 comes packaged in a White coloured cardboard box. The box has picture illustrations, with Chinese language text printed on it. The box measures 12.0cm x 12.5cm x 13.0cm and weighs 403G.

Image shows the outer box of the King Do Way Table Fan WY-F4.
Packaging Image – Image Source – My Helpful Hints (Subject to Copyright)

Upon opening the King Do Way Table Fan WY-F4 box you’ll find the following items. 1x Fan, 1x Bottle, 1x Micro USB Cable, 1x Chinese/English User Guide, 1x Thank You Card.

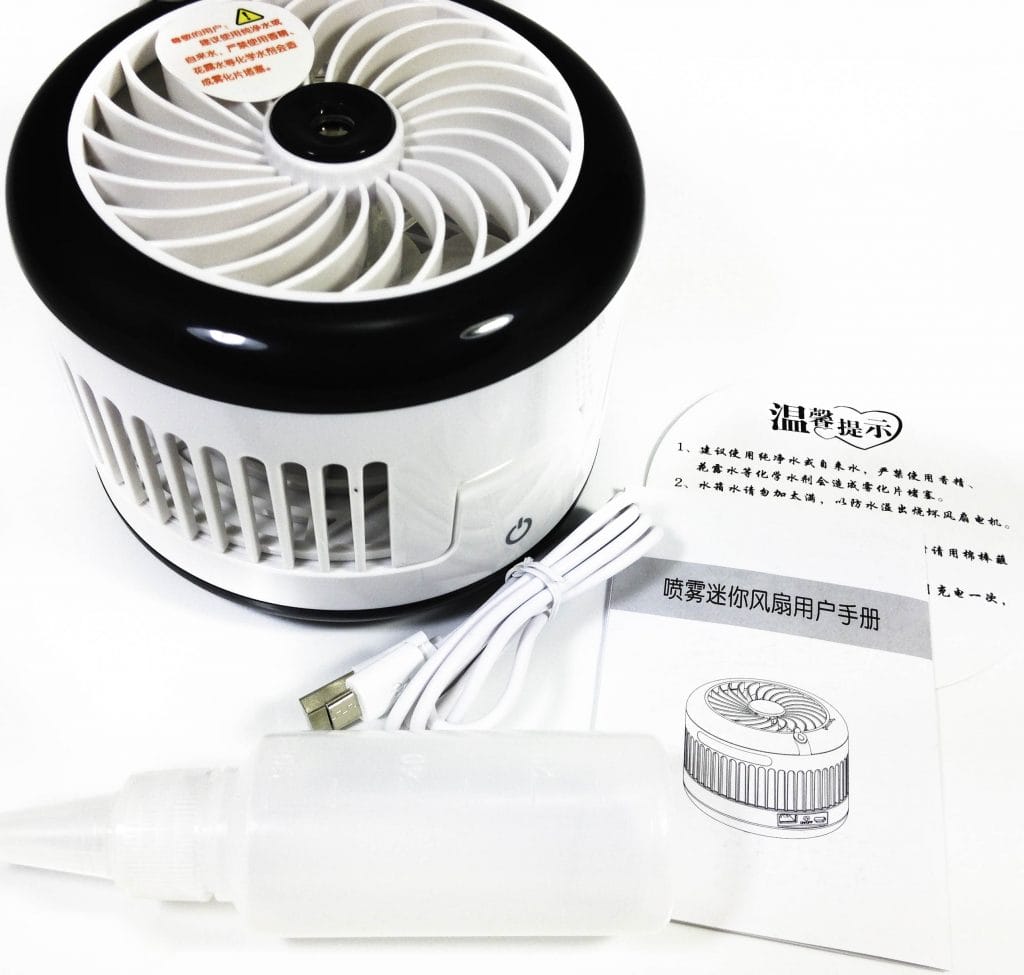

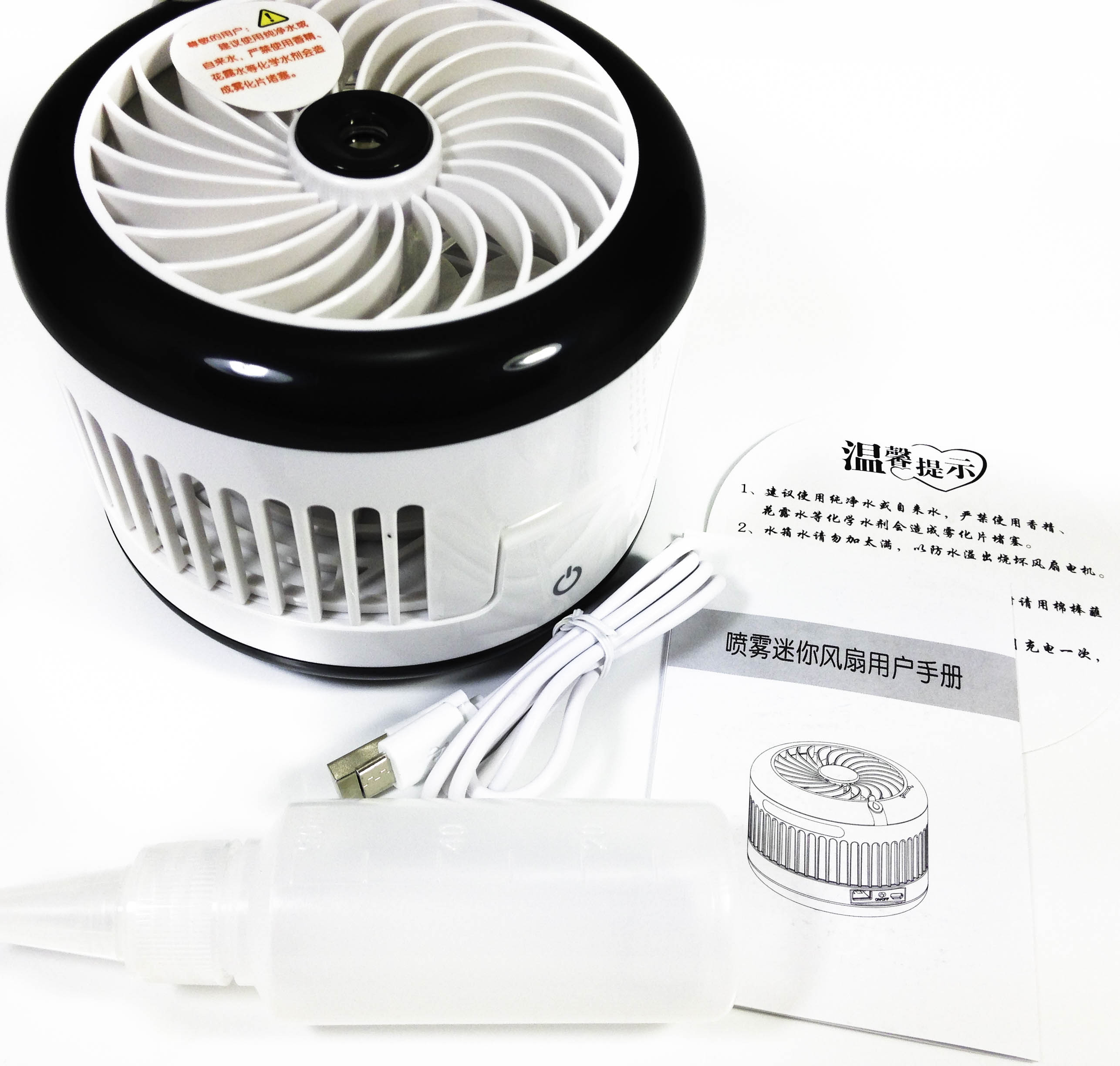

Image shows the included contents.
Contents Image – Image Source – My Helpful Hints (Subject to Copyright)

King Do Way Table Fan WY-F4.

The King Do Way Table Fan WY-F4 is made from high quality plastic materials. The fan is Black and White in colour (Other colour combinations are available, including Blue & White and Pink & White). The fan measures 9.0cm in height and has a diameter of 12.0cm and weighs 300G.

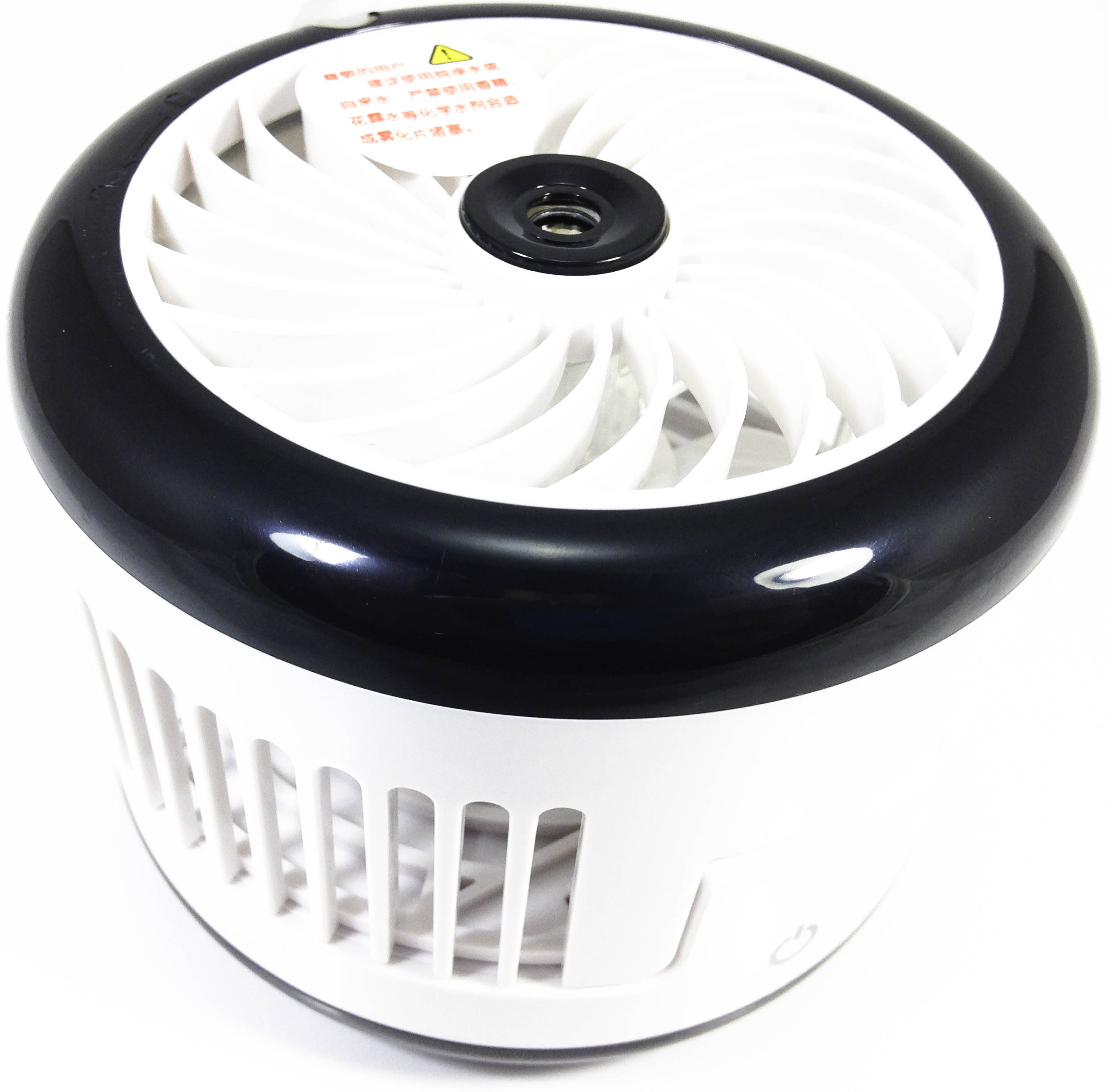

Image shows the fan in a laid downward position.
Product Image – Image Source – My Helpful Hints (Subject to Copyright)

On the reverse of the fan there is a USB Output Port, On/Off Toggle Switch, and a 5V Micro USB In Port.

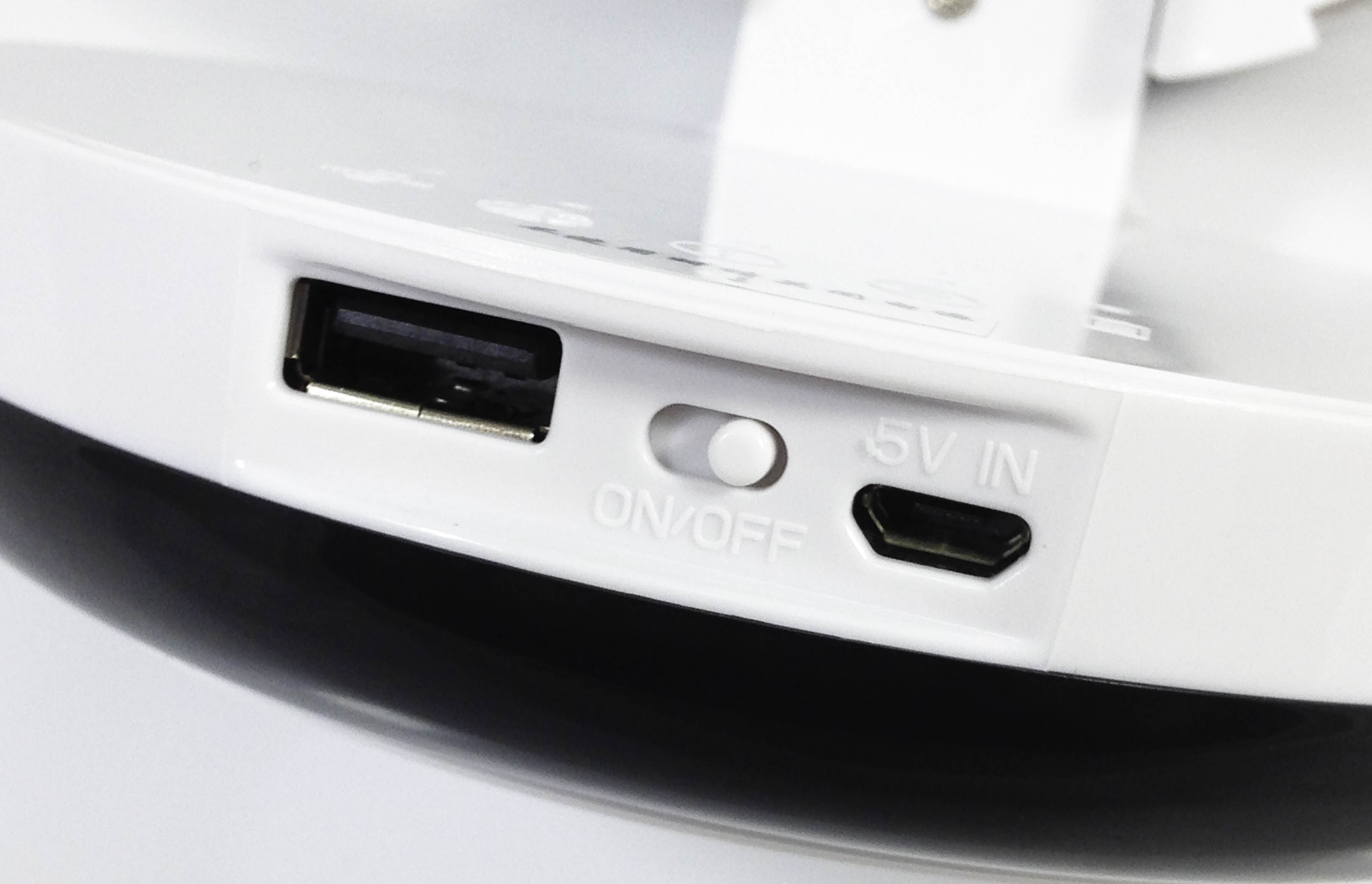

Image shows the ports and power switch.
Image of The Control Area – Image Source – My Helpful Hints (Subject to Copyright)

When you open the fan, there are multiple settings, these are Misting Only, Fan & Misting every 10 seconds, Fan Speed 1, Fan Speed 2, Battery Indicator.

On the bottom there are some rubber non-slip pads, these help to stop the fan from wobbling all over your hard surfaces.

The fan blade itself has 5 blades and a total circumference of 8.0cm.

Using the King Do Way Table Fan WY-F4.

The first thing to do before using this fan is to give it a charge using the supplied USB cable (Which has a length of 1M), charging takes around to 2-3 hours to fully charge up the fan. You can use the fan too whilst charging, but this will lengthen the charging time needed to fully charge the in-built battery.

A Red LED light appears when the fan is on charge.

To use the fan, you need to firstly power it on using the On/Off toggle switch, then press the touch sensitive power/control button on the front of the fan. You need to keep pressing the button to skip through to the desired setting of your choice, these are lit up using the LED lights next to the symbol of the choice setting.

To use the misting function, you need to simply fill up the water bottle (Which has a capacity of 60ml) and squeeze the water into the inlet hole on the front.

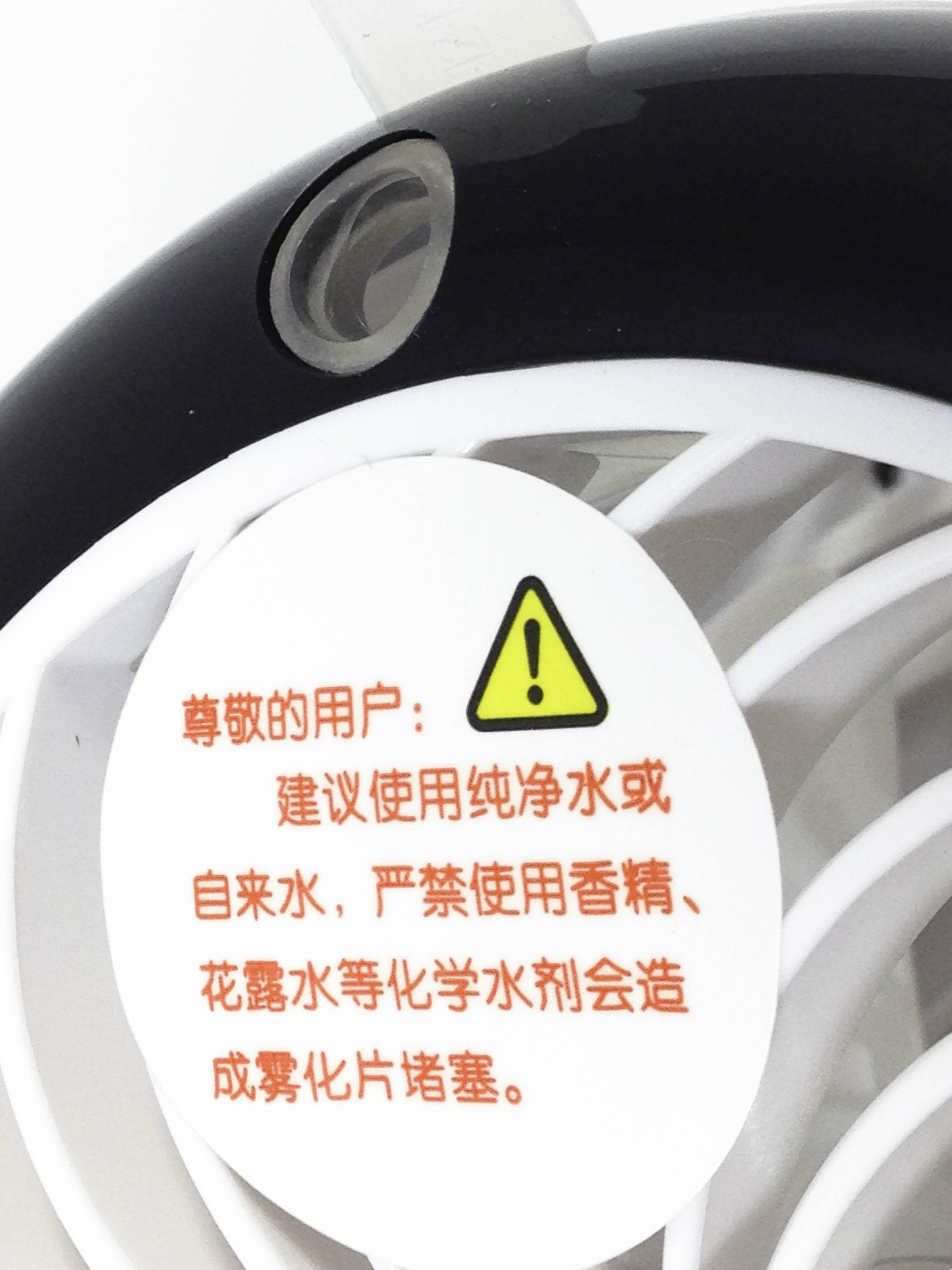

Image shows the water inlet area.
Image of The Water Inlet Area – Image Source – My Helpful Hints (Subject to Copyright)

Atomisation.

This is the technical terminology for the misting function of this fan, when you fill the water reservoir with water this fan puts out a very fine water mist, creating a cooling effect. This process breaks up the water molecules into very tiny atoms and turns the water from liquid into a vapour.

Image shows the misting effect of the King Do Way Table Fan WY-F4.
Product Image – Image Source – King Do Way (Subject to Copyright)

I recommend you only using fresh main water to fill up the water reservoir as to prevent the spreading of bacteria that can harbour in some cold-water storage tanks. Also, it’s a good idea to ensure that the tank is emptied after using the fan and refilled with fresh, clean drinking water every time you use it.

Technical Specifications.

  • Brand: King Do Way
  • Model: Table Fan
  • Model Code: WY-F4
  • Manufacturer Code: KING DO WAYRivezop1524
  • EAN: N/A
  • ASIN: B01J7RYHD2
  • Motor Speed: 3600 (RPM)
  • Rated Voltage: DC5V
  • Rated Power: 3.5W
  • Battery Capacity: 2000mAh
  • Charge Time: 2-3 Hours
  • Usage Time: 3-5 Hours
  • Executive Standard: GB4706.27-2008
  • Compliance: CE, FCC, RoHS

Conclusion.

I quite like this little fan; the misting function is a great feature. The fan itself seems to hold a charge for the stated time. It’s a nice desk gadget that also serves a purpose too. Overall I like it and would recommend you purchasing it today in time for the summer months.

If you’d like to purchase this item, please check out the purchasing options below. The RRP for this product is £15.00.

AliExpress


Good Price


Stock Available


Longer Delivery

Amazon


Stock Available


Prime Delivery


Great Prices

Best Option

eBay


Great Prices


Refurbished


Limited Stock

Product sample provided by King Do Way in exchange for a detailed, unbiased review.
