Prouct Review: AVHzY CT-2 USB Power Meter Load Tester

The AVHzY CT-2 USB Power Meter Load Tester is a digital USB load current tester that can accurately and precisely inform you of both USB-A and USB-C cable performance with an accuracy rating of 0.05%.

You’re able to monitor fast charging for QC2.0-5V/9V/12V/20V, QC3.0 QC4.0 (Or PPS), PD2.0, PD3.0 with PPS (Programmable Power Supply), Apple 2.4A, Huawei FCP/SCP, and Samsung AFC.

So, whether you want to test a powerbank, USB power socket, cable, or any other USB device this handy kit is all you’ll need.

But is it any good? Will I be able to use it? Time to test it out!

Retail Packaging.

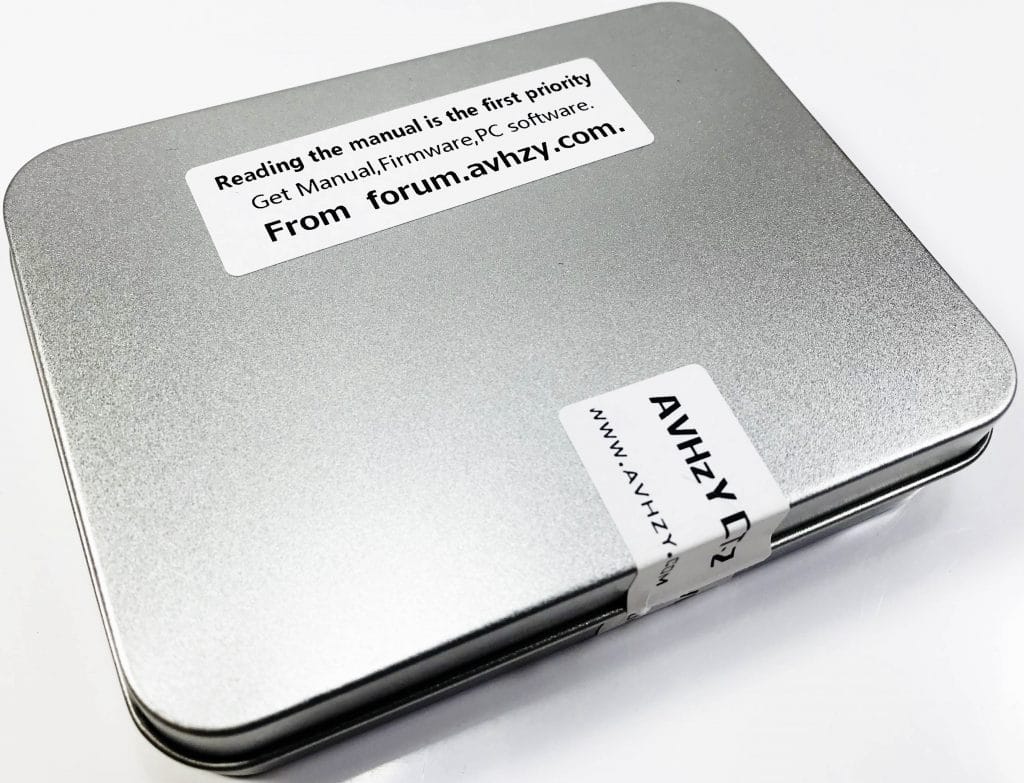

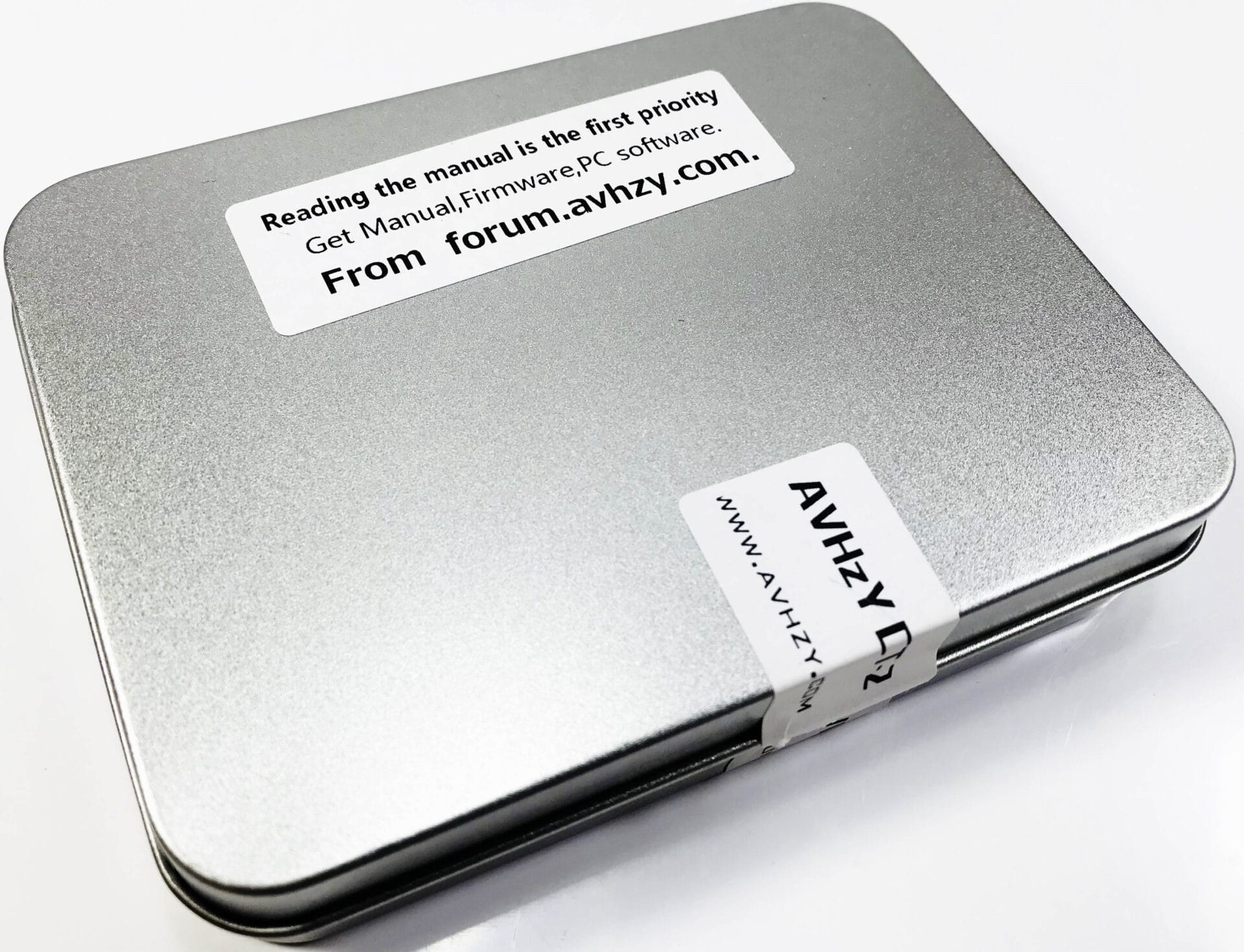

The AVHzY CT-2 USB Power Meter Load Tester comes packaged in a foam lined metal tin.  The tin measures 11.5cm x 8.5cm x 2.3cm and weighs 140G.

AVHzY CT-2
Source – My Helpful Hints (Subject to Copyright)
AVHzY CT-2
Source – My Helpful Hints (Subject to Copyright)

Contents.

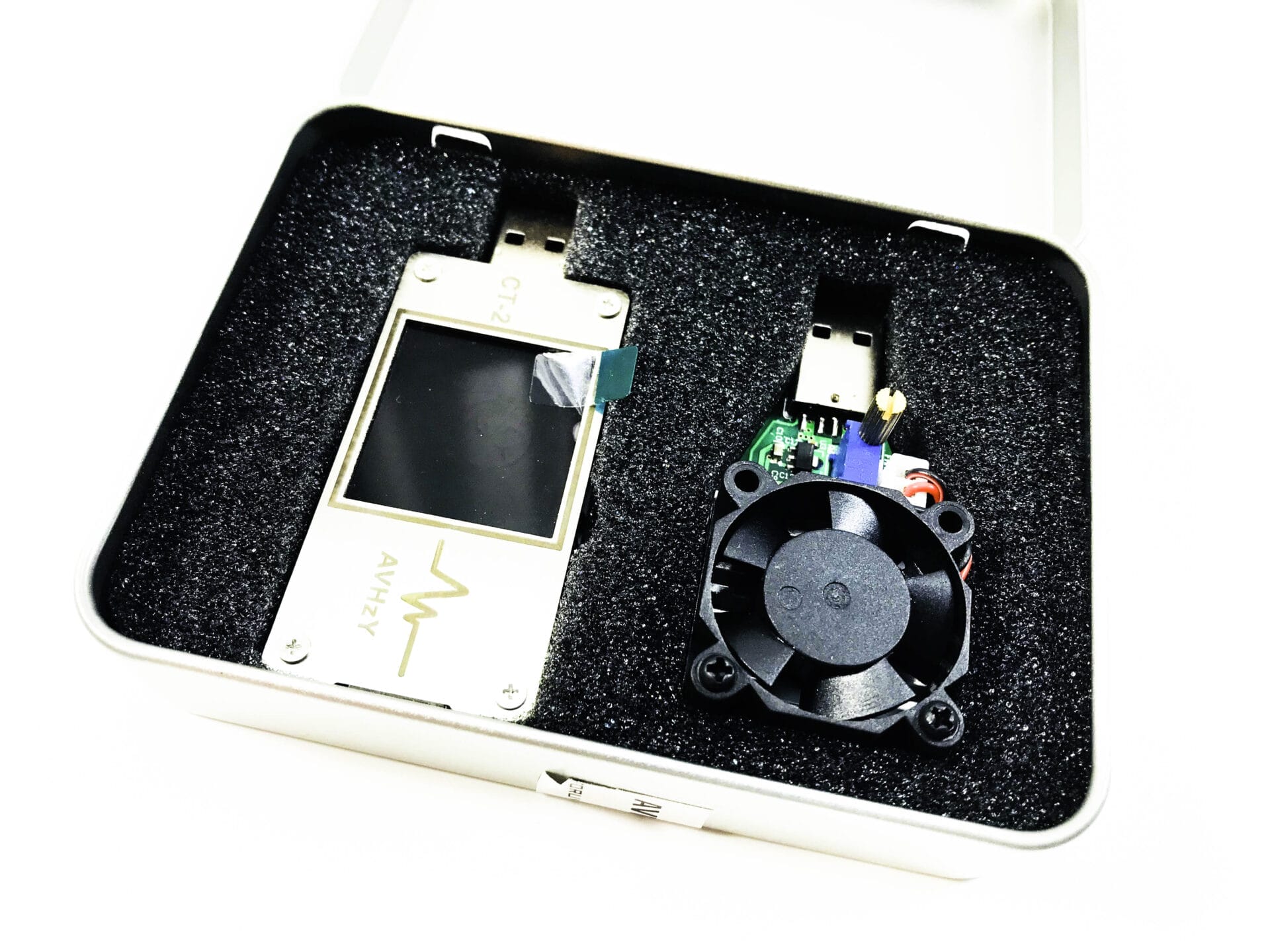

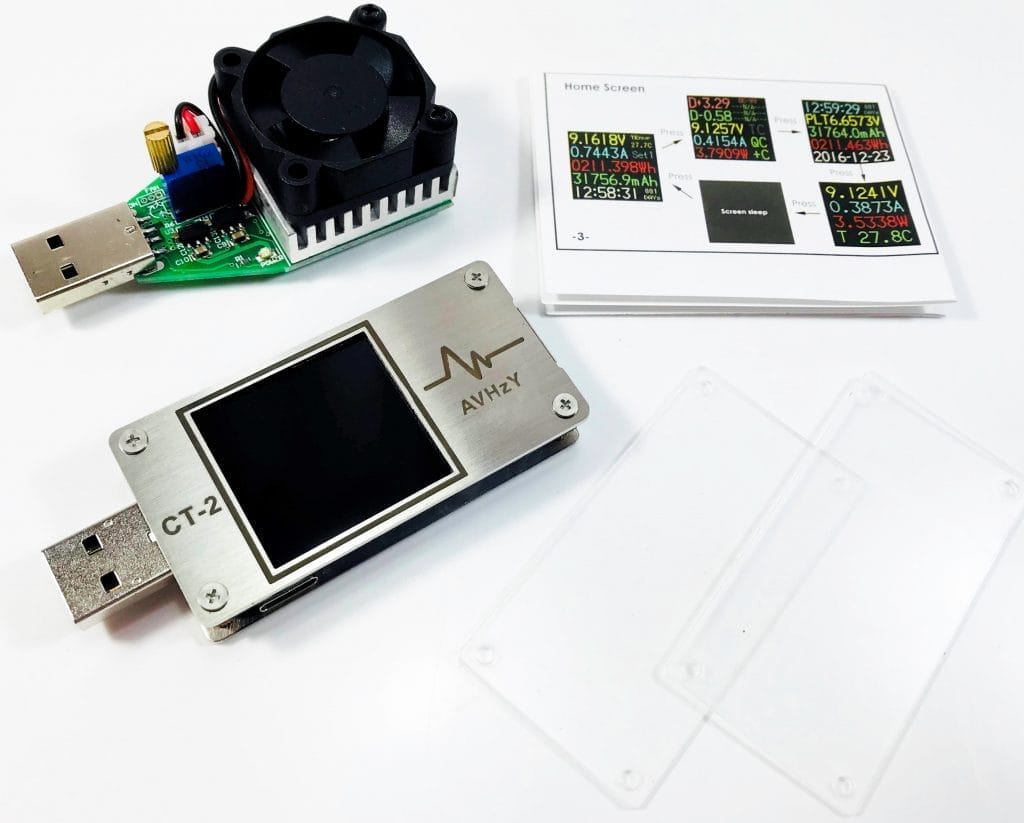

Once you open the tin you’ll find the following: 1x USB Meter, 1x USB Electronic Load, 2x Protective Covers, 1x English Quick Start Guide.

AVHzY CT-2
Source – My Helpful Hints (Subject to Copyright)

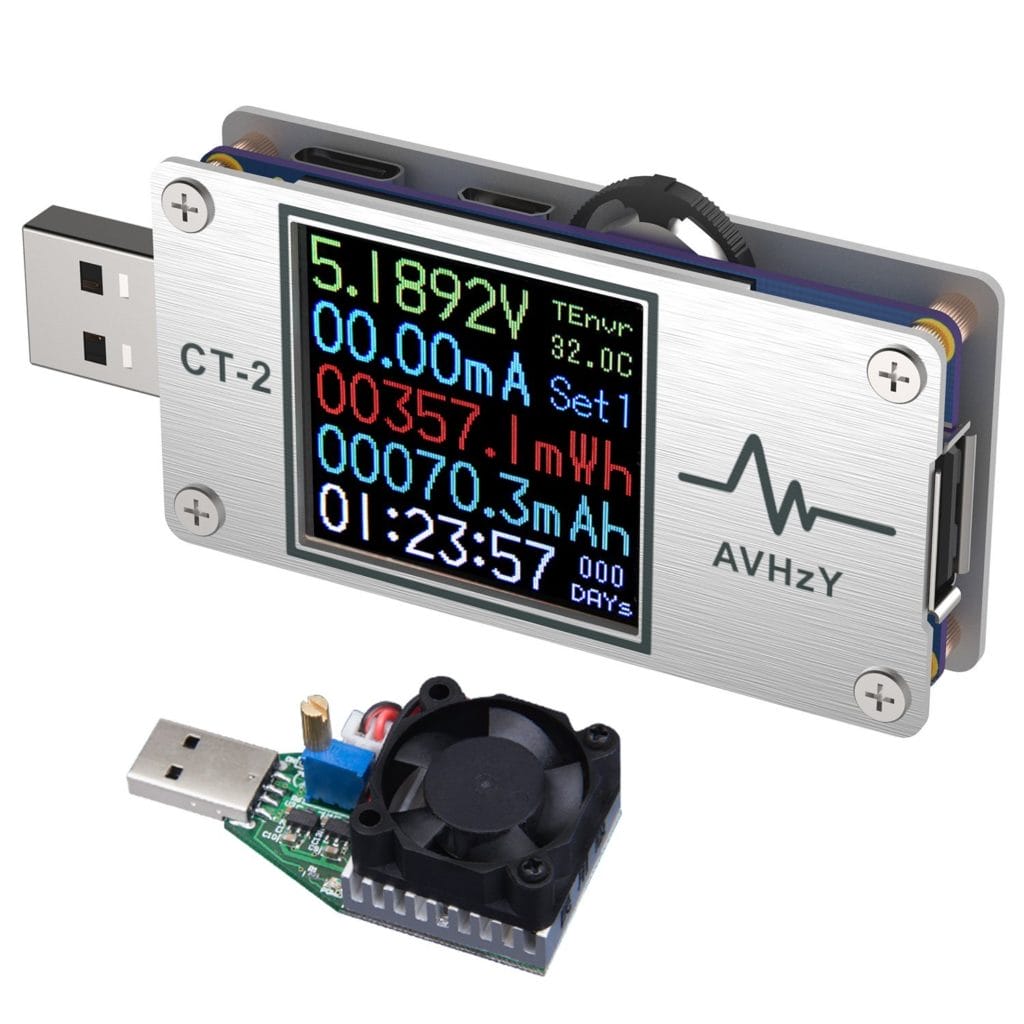

AVHzY CT-2 USB Power Meter Load Tester.

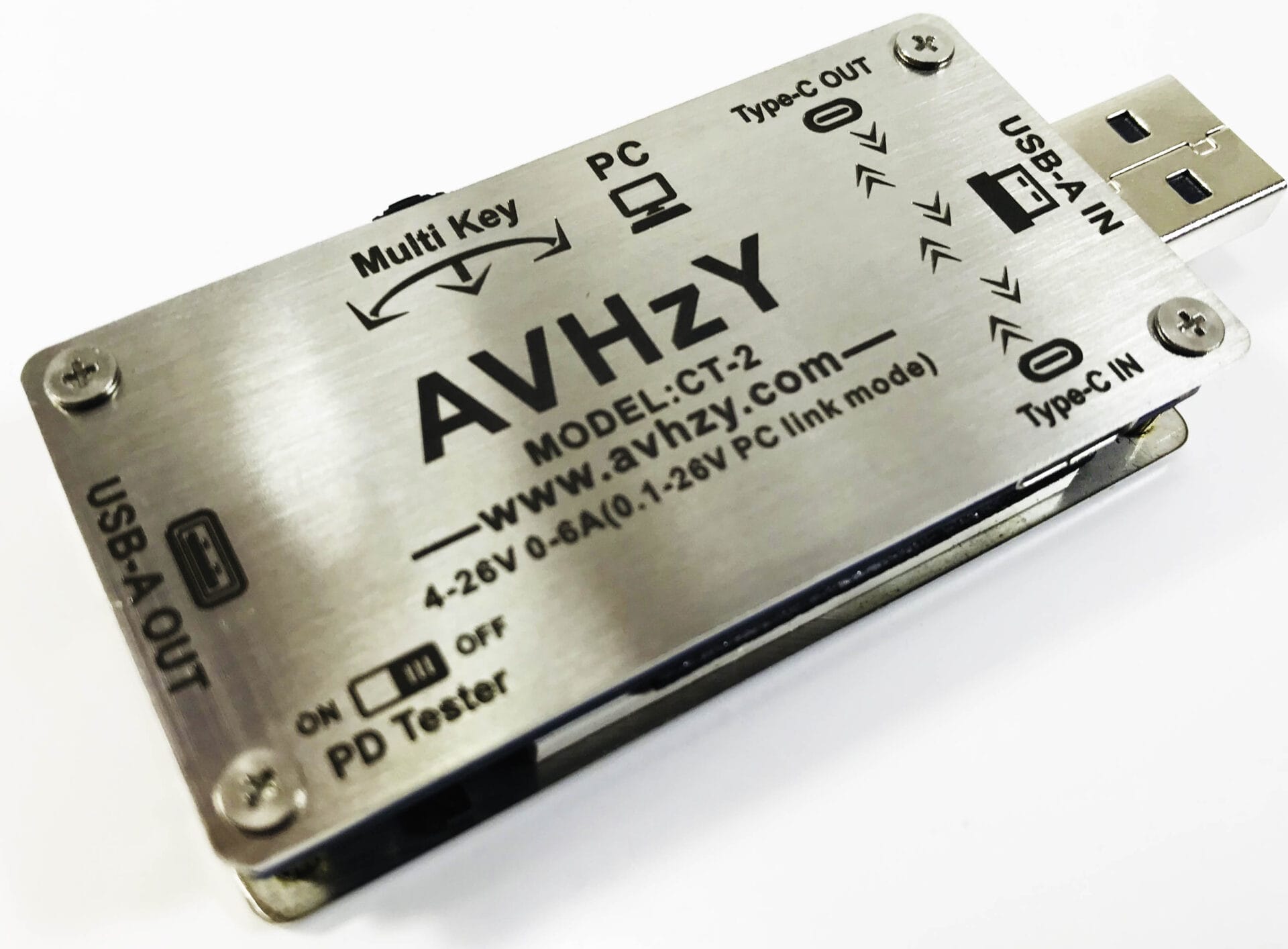

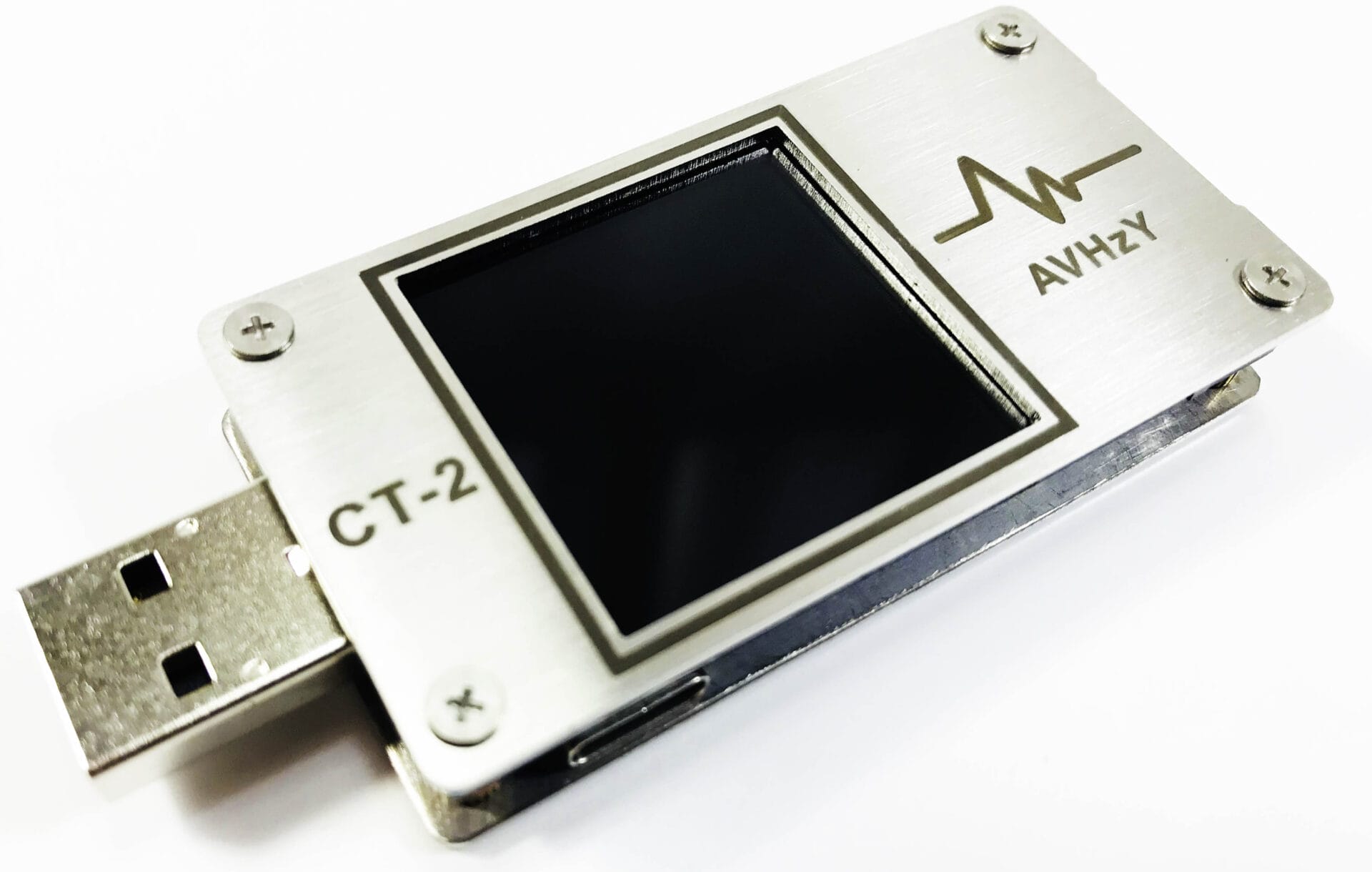

The AVHzY CT-2 USB Power Meter Load Tester is a two-part testing rig, the first part is the USB Meter which measures 7.5cm x 3.0cm x 0.5cm and has an LCD screen with a size of 3.0cm x 2.5cm.  You get several different ports which are; USB-A In, USB-C In, USB-C Out, PC Input, Multi-Key Switch, PD Tester On/Off, and USB-A Out.

AVHzY CT-2
Source – My Helpful Hints (Subject to Copyright)
AVHzY CT-2
Source – My Helpful Hints (Subject to Copyright)

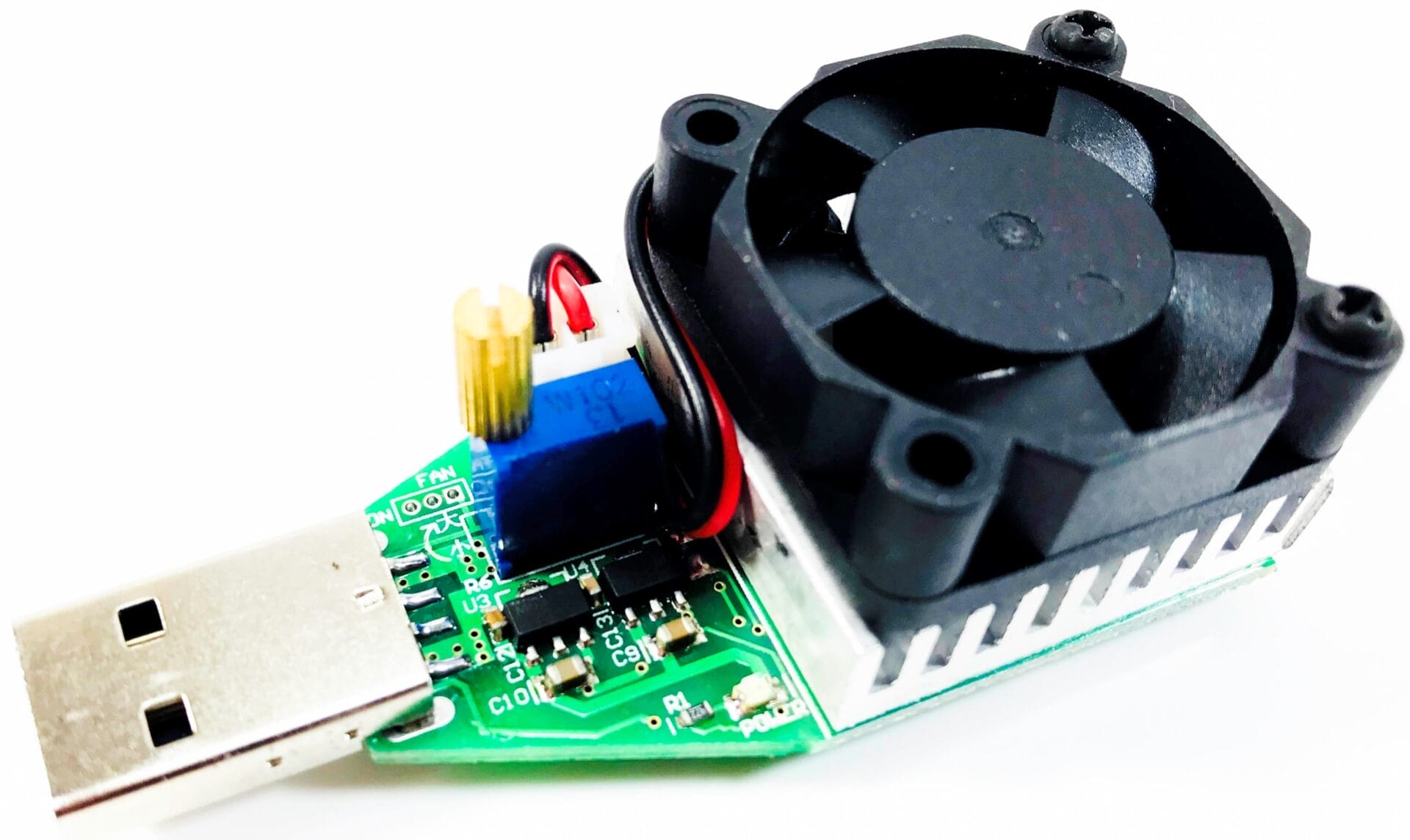

The second part is the USB Electronic Load, this measures 6.5cm x 3.0cm x 2.0cm and has a USB-A male plug end and features a potentiometer and a little DC brushless fan for heat displacement.

AVHzY CT-2
Source – My Helpful Hints (Subject to Copyright)

Setting up.

I’m new to the world of USB electronics, although I’m a qualified electrician the two aren’t the same and this is all new to me.  But, I want to give it a go and I’m sure the AVHzY CT-2 will be a useful addition to my reviewer’s toolkit for future reviews and tests.

You also get a software package included with the CT-2, all you need to do is use a head over to http://forum.avhzy.com/forum.php?mod=viewthread&tid=1&extra=page%3D1 and extract the ZIP files.  Once downloaded you’ll need to open the app called KotomApp.

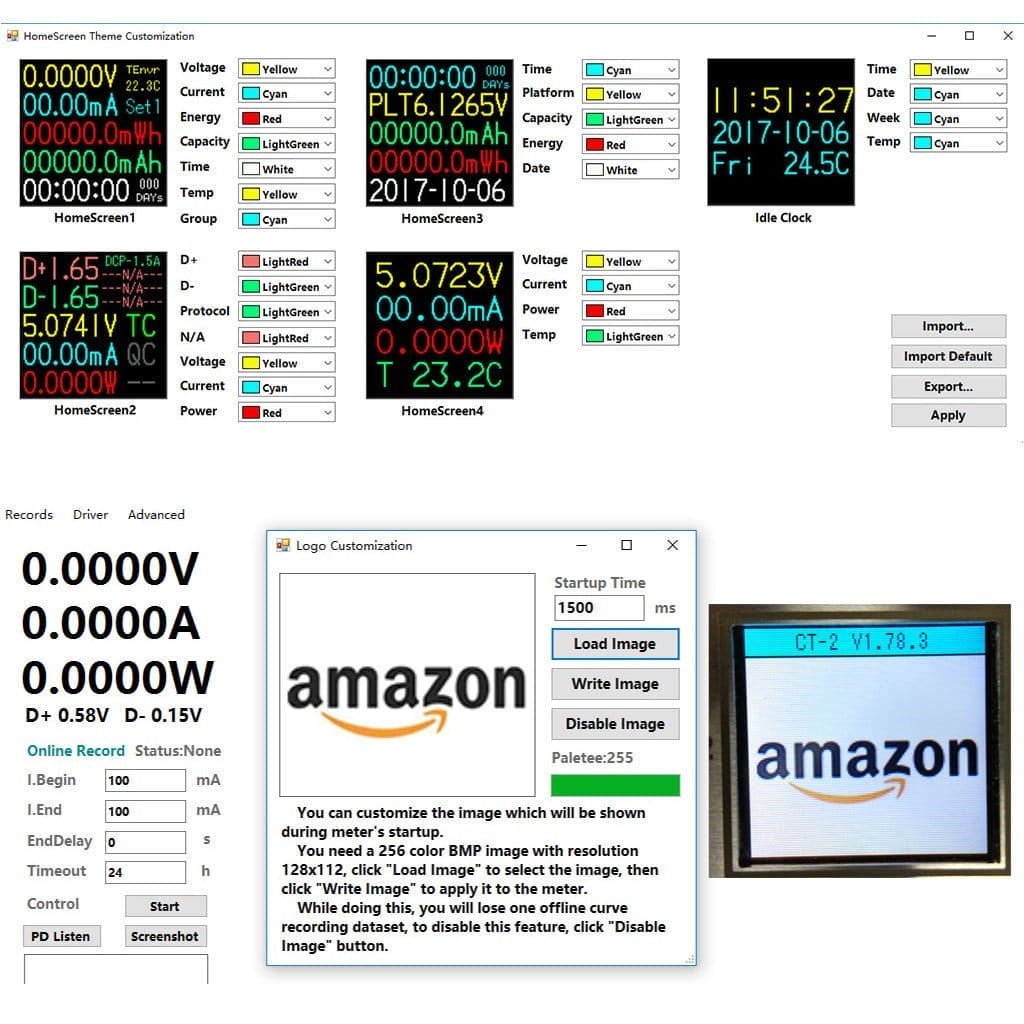

Within this App you can change the display, upload a logo, and save screenshots of your collected data.

AVHzY CT-2
Source – AVHzY (Subject to Copyright)

This is all going to take some weeks for me to learn how to work out how to do all of this, but I’m able to basically test for USB items and see basic information like voltage, amps, and watts.

There’s so much to the AVHzY CT-2 USB Power Meter Load Tester that you’ll be discovering new ways of measuring all the time.  Another useful feature is the new USB-C plug testing option for those devices that use the USB-C leads.  This is handy to test how good an advertised cable is.

Features.

Basic USB Meter Features

Voltage and current monitoring with 0.0001V, 0.0001A resolution, 0.05% precision.
Voltage and current curve painting with sample rate up to 100 samples per second.  (Note: Curve painting mode only, recording cannot be done at that rate)
5 groups of capacity, energy, time recording.
D+ D- voltage measure with 0.01V resolution, 2% precision.

Fast Charge Trigger Features

PD2.0, PD3.0 with PPS (Programmable Power Supply) trigger supported
QC2.0 (5V/9V/12V/20V), QC3.0, QC4.0 (Or PPS) trigger supported.
Samsung AFC 9V, Huawei FCP 9V, Huawei SCP 4.5V trigger supported.
Apple 2.4A trigger supported.
Apple MFI cable authorization test (Reference only).
Auto enumerate protocols function for chargers/power banks.

Offline Curve Recording

Offline curve recording with 4 datasets, 3750 data points per set. Curves can be uploaded to PC software for further analysis, Easy CSV file export.

Technical Specifications.

  • Brand – AVHzY
  • Model – CT-2 USB Power Meter Load Tester
  • EAN – N/A
  • SKU – UKCT10002
  • ASIN – B075QDGV9S
  • Main Control IC – STM32 F072
  • Voltage Current Range – DC 4-26V (0.1-26V) 0-6A
  • Voltage Current Resolution – 0.0001V 0.0001A
  • Current Accuracy – 0.1%+2d
  • Overall Internal Resistance – 28mOhms (After 1000 cycles)
  • Quiescent Accuracy – 0.4mA (At DC 5V)
  • Self-Power Solution – DCDC
  • Time Accuracy – 0.002%
  • Applied Voltage Range – DC 3.7V-13V
  • Adjustable Current Range – 0.15A-3.00A
  • Electricity Discharging – Continuous 15W
  • Temperature Control –  About 40 ℃
  • Compliance – CE

Conclusion.

The AVHzY CT-2 USB Power Meter Load Tester is a sophisticated piece of equipment.  I’m just starting out learning the fields of electronics and the CT-2 will be a great addition for me, once I get the hang of it!  The software looks a little daunting at first, but I suppose when you get used to it, it will be fine.

Overall though I’m enjoying my new hobby and the CT-2 is fantastic, I highly recommend it.  I’m sure in my future reviews I’ll be able to test and report back in more detail about some companies advertised Volt/Amp/Watt readings.

If you want the AVHzY CT-2 USB Power Meter Load Tester for yourself, it’s available only on Amazon and comes with a 12-month warranty.  The RRP for this USB tester is £80.00.


Thank you for reading this, feel free to comment down below, your input really matters to me.  I can also be contacted here.  Why not check out my other product reviews here.

Darren
