XTAR L4 Pro Battery Charger

A Single Charger for Every Battery? Introducing the XTAR L4 Pro Battery Charger.

In an age where our lives are powered by an ever-growing array of devices, from remote controls and toys to cameras and Bluetooth gadgets, the need for a versatile and intelligent battery charger has never been greater.

We’ve all been there: a drawer full of dead batteries, a tangle of incompatible chargers, and the frustration of not knowing if a seemingly lifeless battery can be brought back from the brink.

Today, I’m taking a proper look at a solution that promises to cut through that complexity: the XTAR L4 Pro Battery Charger.

XTAR has a reputation for delivering reliable charging solutions, and the L4 Pro steps up to address the common pain points of battery management.

This charger isn’t just about topping up cells; it boasts wide compatibility across different battery chemistries and voltages, intelligent detection, and even the ability to revive batteries that would otherwise be destined for the bin.

But does it live up to its ambitious claims of simplifying your charging needs and extending battery life?

I’m particularly keen to explore its “intelligent detection system,” its unique “over-discharged Ni-MH battery revival” function, and how effectively its independent slots handle a mixed batch of batteries.

Right then, let’s jump into the full review and see exactly how the XTAR L4 Pro Battery Charger performs in real-world use!

Packaging and Contents.

The XTAR L4 Pro Battery Charger typically arrives in a compact and informative cardboard box, designed to protect the unit and highlight its key features.

The packaging is usually straightforward and practical, focusing on the product’s capabilities rather than elaborate aesthetics.

The box measures approximately 13.0cm x 8.5cm x 4.0cm and weighs around 142g.

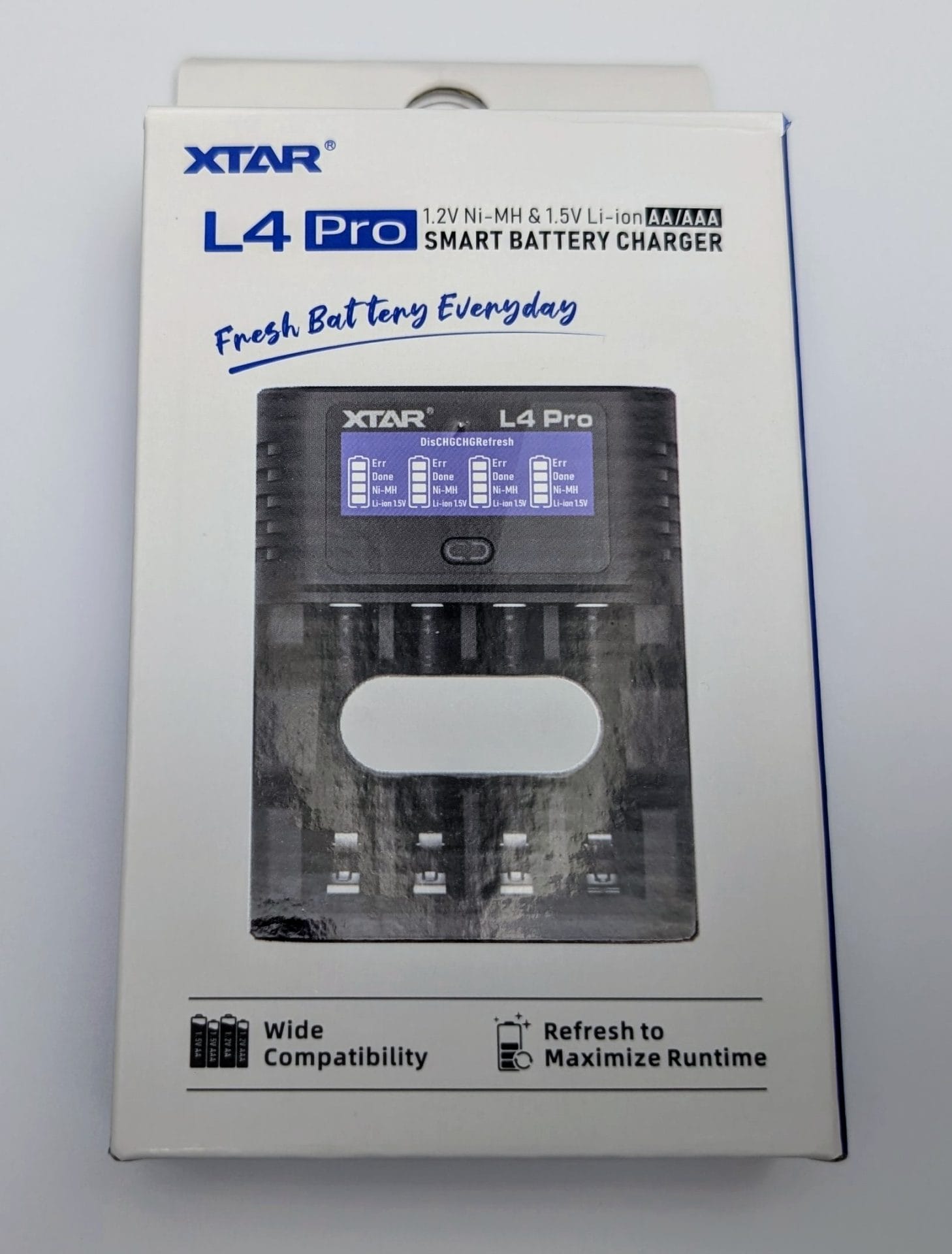

Box of the XTAR L4 Pro Smart Battery Charger, featuring a black charger with a digital display showing charging status for Ni-MH and Li-ion AA/AAA batteries. The box highlights compatibility with 1.2V Ni-MH and 1.5V Li-ion batteries, wide compatibility, and a refresh function to maximize runtime. The brand logo and model name are prominently displayed on the packaging.
Outer Packaging – Image Source – My Helpful Hints (Subject to Copyright)

Inside the box, you’ll typically find the following essential items:

  • XTAR L4 Pro Battery Charger
  • USB-C Charging Cable (for power input)
  • User Manual/Quick Start Guide

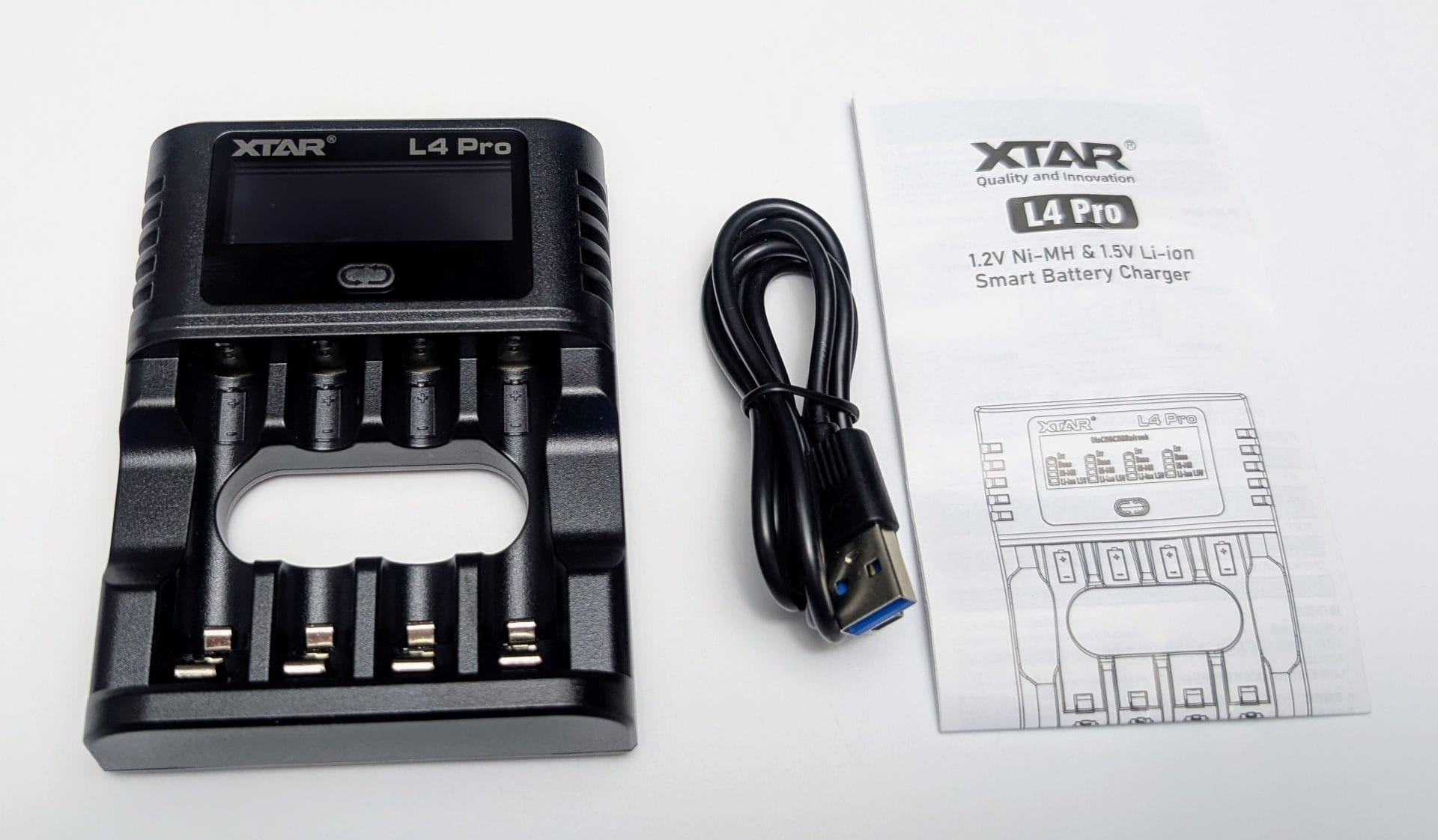

XTAR L4 Pro Smart Battery Charger set, including a black charger with a digital display and four battery slots, a USB cable, and a user manual with a diagram. The charger is designed for 1.2V Ni-MH and 1.5V Li-ion AA/AAA batteries, placed on a white background.
Contents Image – Image Source – My Helpful Hints (Subject to Copyright)

It’s important to note that a USB power adapter is generally not included, meaning you’ll need to use your own (a 5V 2A adapter is recommended for optimal performance).

The included USB-C cable measures approximately 18cm.

Design and Build Quality.

The XTAR L4 Pro sports a compact and practical design, making it a discrete and convenient addition to any desk or charging station.

Measuring approximately 102 x 80 x 27.5 mm (L x W x H) and weighing around 87g, it’s lightweight and portable enough to be easily slipped into a bag for travel.

The charger is primarily constructed from durable ABS plastic, which provides a robust yet lightweight feel.

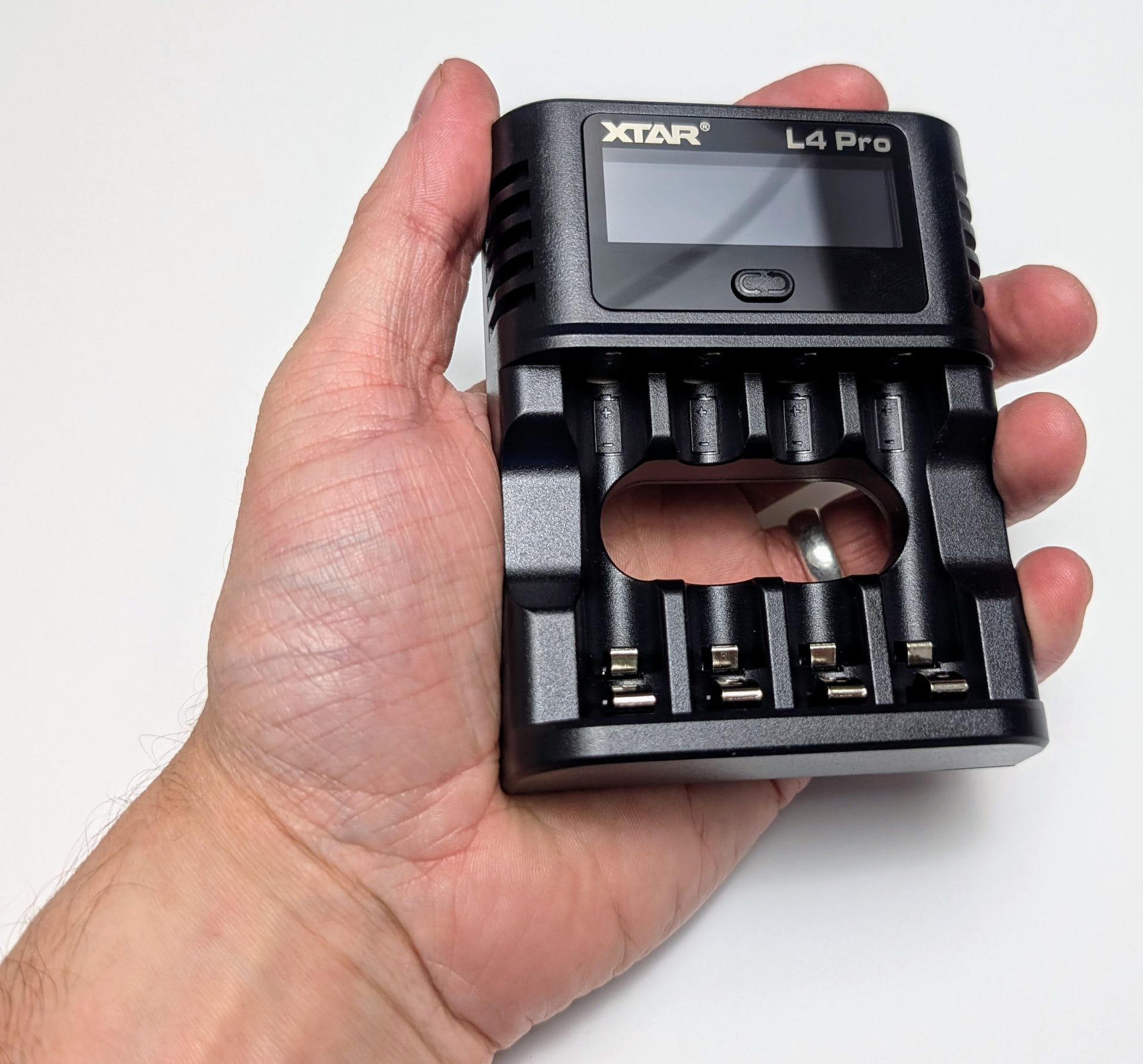

A hand holding the XTAR L4 Pro Smart Battery Charger, a compact black device with a digital display and four battery slots, set against a white background.
Product Image – Image Source – My Helpful Hints (Subject to Copyright)

While the material is not as premium as metal, it’s a common and effective choice for electronics, offering good resistance to everyday wear and tear.

A notable design feature is its “hollowed-out” structure.

This isn’t just for aesthetics; it’s engineered to significantly enhance heat dissipation, ensuring the charger and batteries remain cool during operation.

This thoughtful design also makes inserting and removing batteries a breeze.

Each of the four charging slots is clearly defined and provides secure housing for batteries of different sizes.

The charger features an intuitive display screen which provides clear readouts of battery status and charging progress.

Additionally, LED indicators above each slot offer quick visual cues.

If a non-rechargeable or mismatched battery is inserted, the display will show “Err” and the corresponding LED will flash, providing instant user feedback for safety and proper operation.

Universal Compatibility & Intelligent Charging.

The XTAR L4 Pro stands out with its truly wide compatibility, addressing one of the biggest headaches of modern battery usage.

This single charger is designed to accommodate both common 1.2V AA/AAA Ni-MH batteries (found in remote controls, toys, and flashlights) and 1.5V Li-ion batteries (often used in cameras and Bluetooth devices).

This broad support means you can consolidate your charging needs, saving valuable time, space, and the frustration of juggling multiple chargers.

At the heart of the L4 Pro’s versatility is its intelligent detection system.

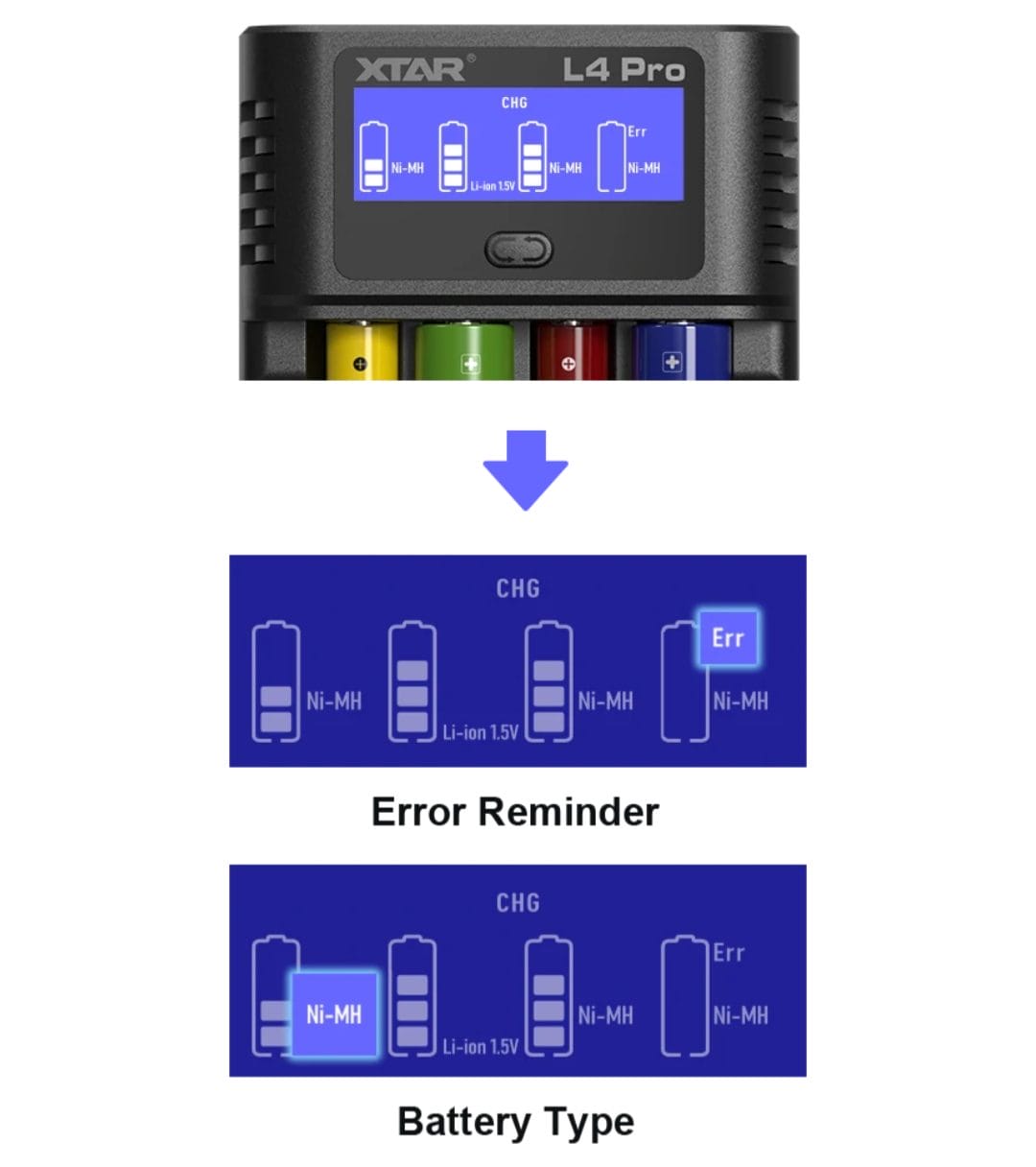

Image of the XTAR L4 Pro Smart Battery Charger displaying its digital screen with charging status indicators (CHG and Err) for Ni-MH and Li-ion 1.5V batteries in four slots. The screen shows one Ni-MH and one Li-ion 1.5V battery charging, with two Ni-MH batteries showing errors. Below, a diagram explains the charging (CHG) and error (Err) indicators, with a note on battery type identification.
Intelligent Detection Image – Image Source – XTAR (Subject to Copyright)

Upon insertion, the charger automatically identifies the battery type and capacity, then precisely adjusts the charging parameters to ensure the most effective and safe charging process.

This intelligent recognition is critical for optimising battery health and preventing damage.

It means you don’t need to worry about manual settings, even if your batteries are from different brands, have varying capacities, or come in different sizes.

The charger takes care of everything, delivering the best “charging treatment” for each individual cell.

Revival & Battery Health.

Beyond standard charging, the XTAR L4 Pro offers a particularly valuable feature: the ability to revive over-discharged Ni-MH batteries.

Many users have experienced the disappointment of a seemingly dead Ni-MH battery that won’t take a charge.

The L4 Pro employs a special microcurrent activation technology to initiate a restoration process for these “zombie batteries.”

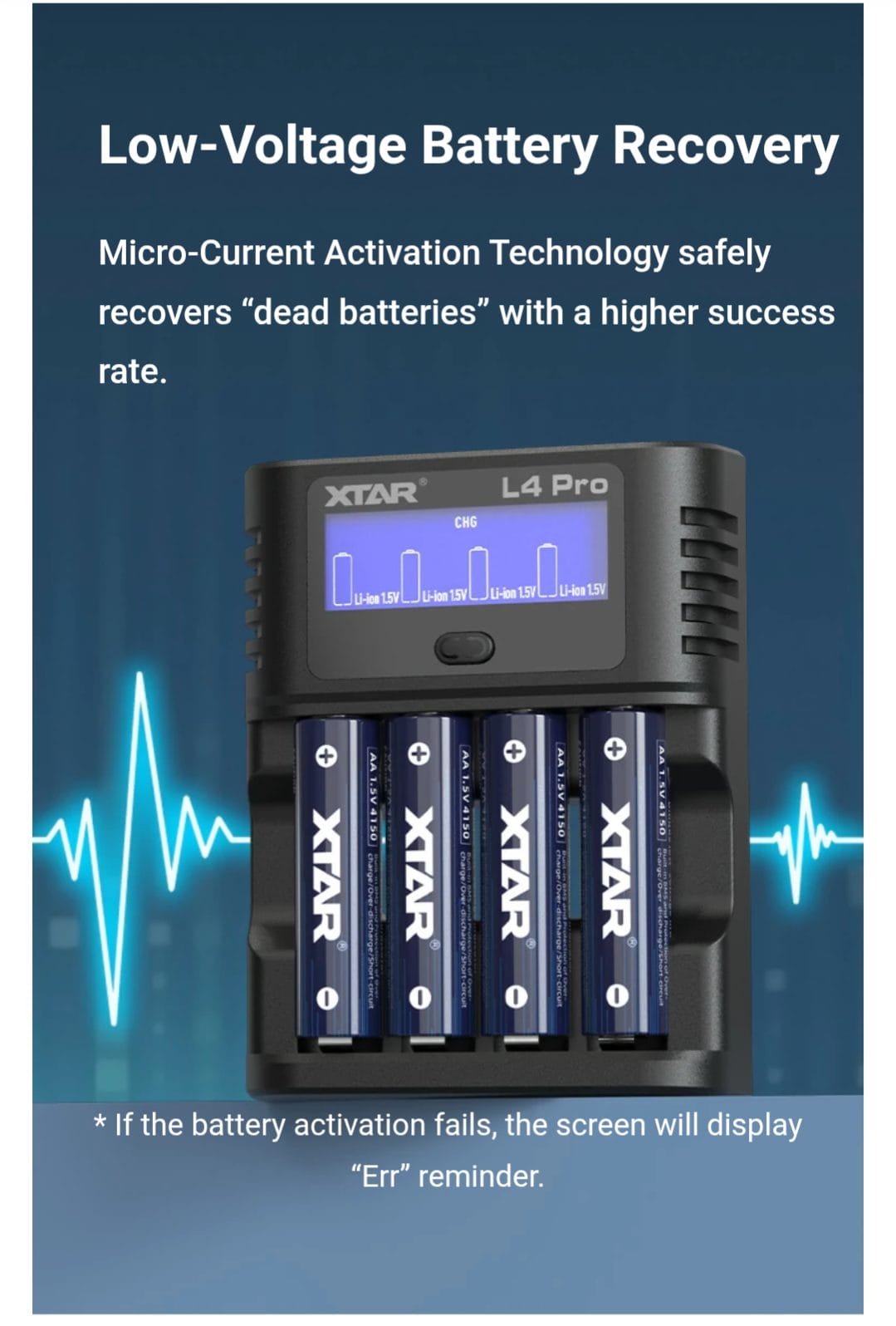

Promotional image for the XTAR L4 Pro Smart Battery Charger featuring its low-voltage battery recovery function. The charger, with a digital display showing "CHG" for four XTAR batteries (Li-ion 1.5V), is depicted against a blue background with a heartbeat line graphic. Text highlights the use of Micro-Current Activation Technology to safely recover "dead batteries" with a higher success rate, and notes that a failed activation will display an "Err" reminder.
Battery Recovery Image – Image Source – XTAR (Subject to Copyright)

Simply insert the over-discharged Ni-MH cell, and the charger will automatically attempt to bring it back to life, saving you the cost and environmental impact of discarding and replacing them.

For overall battery health, the L4 Pro incorporates multi-stage repair technology.

For Ni-MH batteries, a “Refresh Mode” performs up to four discharge-charge cycles, ideal for older or frequently used batteries to eliminate memory effect and restore full capacity.

A single “Discharge Mode” cycle is also available to maximise charge capacity.

This intelligent discharge-charge cycle management helps extend the lifespan of your batteries significantly.

Furthermore, by adopting advanced technologies such as 5-level full-charge detection and CVSA technology, the charging process is meticulously managed.

This ensures not only fast charging but also minimal heat generation, which is crucial for protecting the battery from unnecessary wear, damage, and ultimately, prolonging its usable life.

Independent Charging & Intuitive Display.

A key operational advantage of the XTAR L4 Pro is its independent charging slots.

Each of the four slots operates completely autonomously.

This means you can simultaneously charge anywhere from one to four batteries, even if they are from different manufacturers, have vastly different capacities, come in varying sizes (AA or AAA), or are of different chemical compositions (Ni-MH and Li-ion).

This eliminates the need for frustrating “pair charging” and significantly improves the efficiency and flexibility of your charging routine.

You no longer have to wait for a matching battery or worry about load balancing issues.

The user experience is further enhanced by the intuitive display screen.

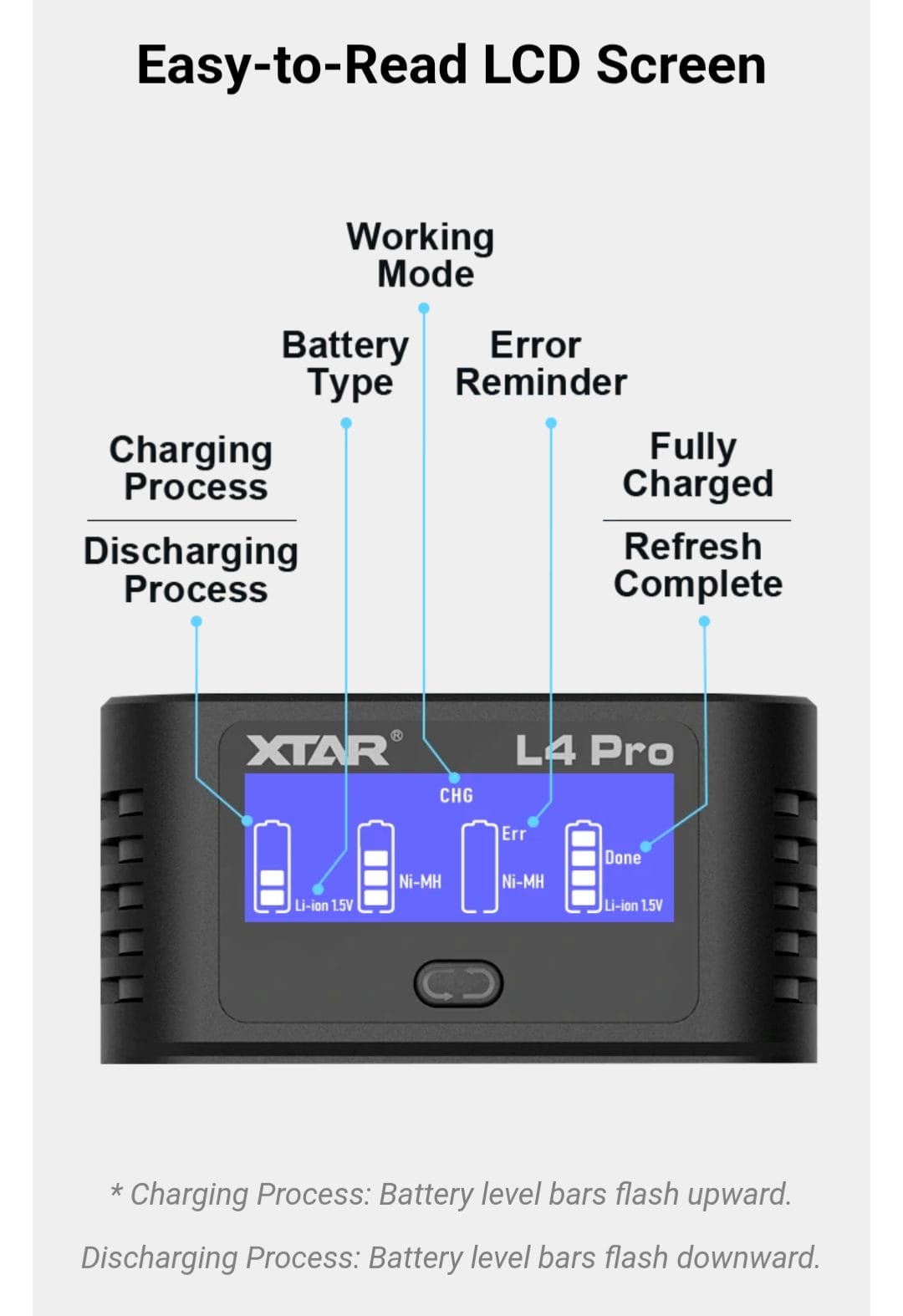

Promotional image of the XTAR L4 Pro Smart Battery Charger highlighting its easy-to-read LCD screen. The screen displays charging status (CHG), battery types (Ni-MH, Li-ion 1.5V), error reminders (Err), and refresh complete (Done) indicators. Labels point to working mode, battery type, charging process, discharging process, error reminder, fully charged, and refresh complete. Text notes that battery level bars flash upward during charging and downward during discharging.
LCD Screen Image – Image Source – XTAR (Subject to Copyright)

This clear display provides real-time updates on each battery’s status and charging progress, allowing you to easily monitor the process.

Whether it’s showing the current charge level, indicating an error, or confirming completion, the visual feedback makes operation straightforward and prevents guesswork.

Dedicated LED lights above each slot also offer quick visual cues.

Safety Features.

Safety is paramount when dealing with battery charging, and the XTAR L4 Pro is equipped with multiple layers of protection to ensure a secure charging environment for both your batteries and your home.

XTAR has incorporated comprehensive safety mechanisms into its design:

  • Overcharge Protection: Prevents batteries from being charged beyond their safe voltage limits, which can lead to overheating, swelling, or damage. The charger automatically cuts off power once a battery is full.
  • Overvoltage Protection: Safeguards against potential voltage spikes from the power source.
  • Overcurrent Protection: Monitors and limits the charging current to prevent excessive flow that could damage the battery or charger.
  • Short Circuit Protection: Immediately cuts power in case of an accidental short circuit, preventing dangerous current surges.
  • Reverse Polarity Protection: Protects both the charger and batteries if a battery is accidentally inserted incorrectly (positive and negative terminals reversed).
  • Thermal Protection / Temperature Monitoring: Continuously monitors the internal temperature of the charger and batteries. If temperatures rise above safe thresholds, the charger automatically reduces power or halts charging to prevent overheating.
  • Primary Cell Detection: Prevents attempts to charge non-rechargeable (primary) batteries, which can be dangerous.

These robust safety features provide peace of mind, allowing you to charge your batteries with confidence.

Performance (Charging Speed & Efficiency)

The XTAR L4 Pro offers a consistent charging current of 0.5A (500mA) per slot.

This is a balanced charging speed, designed to efficiently charge batteries while generating minimal heat and promoting battery longevity.

For common AA Ni-MH batteries with capacities around 2000-2500mAh, a 0.5A charge rate typically means a full charge within approximately 4-5 hours for a single battery.

Charging four batteries simultaneously will mean each receives 0.5A, so the total time per battery remains the same.

While 0.5A isn’t the fastest charging speed available on the market for some battery types, it’s a deliberate choice by XTAR to prioritise battery health and safety through a more gentle charging curve.

This approach, combined with the intelligent detection and advanced charging technologies, ensures that batteries are charged optimally without unnecessary stress, contributing to their extended lifespan.

The minimal heat generation is a testament to the charger’s efficiency and protection mechanisms.

Technical Specifications.

  • Brand: XTAR
  • Model: L4 Pro Battery Charger
  • Input: 5V 2A
  • Compatible Battery Type: 1.5V Li-ion (AA/AAA) & 1.2V Ni-MH (AA/AAA)
  • Charging Slots: 4 (Independent)
  • Constant Charge Current: 0.5A x 1 or 0.5A x 4 (2.0A total max output)
  • Charge Cutoff Voltage (Ni-MH): 1.45V±0.1V
  • Charge Cutoff Current (Li-ion): ≤100mA
  • Activation Function: Over-discharged Ni-MH battery revival (0V activation)
  • Refresh Mode: Yes (Multi-stage discharge-charge cycles for Ni-MH)
  • Display: Intuitive LCD/LED screen with status indicators (“Err” for errors)
  • Safety Features: Overcharge, Overvoltage, Overcurrent, Short Circuit, Reverse Polarity, Thermal Protection, Primary Cell Detection.
  • Material: ABS
  • Operating Temperature: 0−40°C
  • Dimensions (L x W x H): 102×80×27.5 mm
  • Net Weight: 87g (without batteries)
  • Charging Port Type: USB-C
  • Compliance: CE, UKCA, FCC

Final Thoughts.

The XTAR L4 Pro Battery Charger truly delivers on its promise of versatility, intelligence, and safety.

In a world cluttered with single-purpose chargers, the L4 Pro stands out as a genuine multi-tool for your battery needs.

Its ability to intelligently handle both Ni-MH and Li-ion batteries across different sizes and conditions, all from a single USB-C input, is incredibly convenient.

The standout feature for many will undoubtedly be its capacity to revive over-discharged Ni-MH batteries, saving money and reducing waste.

Coupled with its advanced technologies for extending battery life and its robust suite of safety protections, the L4 Pro offers remarkable peace of mind.

While the 0.5A charging speed might not satisfy those seeking ultra-fast top-ups, it’s a sensible compromise that prioritises the long-term health of your valuable rechargeable cells.

The clear, intuitive display and independent slot operation further enhance its user-friendliness, making it suitable for both casual users and enthusiasts.

For anyone looking to simplify their battery charging, extend the life of their rechargeable cells, and consolidate their charging devices into one smart, safe, and efficient unit, the XTAR L4 Pro is an outstanding choice.

It’s a smart investment for a household increasingly reliant on battery-powered gadgets.

Pros and Cons.

After putting the XTAR L4 Pro Battery Charger to the test, here’s a quick rundown of its key strengths and any points you might want to consider:

Pros

  • Exceptional Wide Compatibility: Charges both 1.2V AA/AAA Ni-MH and 1.5V Li-ion AA/AAA batteries, eliminating the need for multiple chargers.
  • Intelligent Automatic Detection: Automatically identifies battery type, size, and capacity, adjusting charging parameters for optimal performance.
  • Over-Discharged Ni-MH Revival: Can restore seemingly dead, over-discharged Ni-MH batteries, saving replacement costs and reducing waste.
  • Advanced Battery Health Features: Includes multi-stage refresh modes for Ni-MH and technologies like 5-level full-charge detection and CVSA to significantly extend battery lifespan.
  • Independent Charging Slots: Each of the four slots operates independently, allowing simultaneous charging of different battery types, sizes, and capacities without issues.
  • Intuitive Display & Indicators: Clear LCD/LED display shows charging progress and status for each slot, with “Err” warnings for incompatible batteries.
  • Comprehensive Safety Protections: Features overcharge, overvoltage, overcurrent, short circuit, reverse polarity, thermal protection, and primary cell detection.
  • Efficient & Low-Heat Charging: 0.5A per slot is a balanced rate that minimises heat generation, protecting batteries.
  • Compact & Portable Design: Lightweight ABS construction with a thoughtful hollowed-out design for easy heat dissipation and travel.
  • USB-C Powered: Modern and convenient power input.

Cons

  • Charging Speed: While optimal for battery health, 0.5A per slot may be slower than some users prefer for very rapid charging needs.
  • No Power Adapter Included: Requires you to supply your own 5V 2A USB power adapter.
  • Limited Display Detail: While intuitive, it doesn’t offer granular details like mAh charged or internal resistance readings, found on some more advanced hobbyist chargers.
  • No Manual Charge Rate Adjustment: Charging parameters are entirely automatic, with no manual override options.
