UGREEN Revodok Pro 313

Today I’ll be writing a review for the UGREEN Revodok Pro 313. I have reviewed a few products for UGREEN this year, and most recently UGREEN Revodok Pro 210, a 10-in-1 USB-C multifunction adapter.

Today’s adapter is a massive 13-in-1 Revodok adapter. You get multiple HDMI, DP (DisplayPort), USB-A, USB-C ports, and ethernet, SD card slot, 3.5mm audio jack and a 85W pass-through power delivery on top too.

You can utilise triple monitor screen display with the two HDMI and a single DP ports in 4K@60Hz max. Making cross-screen multitasking and creative workflows even more efficient.

As mentioned above, you get a massive 85W USB-C pass-through power delivery. Simply utilise the USB-C port that has the power icon, this port only supports power and can’t transfer files etc. You can charge a Surface Pro 7 from a low battery, to 79% in a hour.

So, is this 13-in-1 adapter any good? Time to test it out!

Packaging and Contents.

The UGREEN Revodok Pro 313 comes packaged in a white sleeved box which shows product images and specifications printed on it. The box measures 19.5cm x 11.0cm x 2.7cm and weighs 338G.

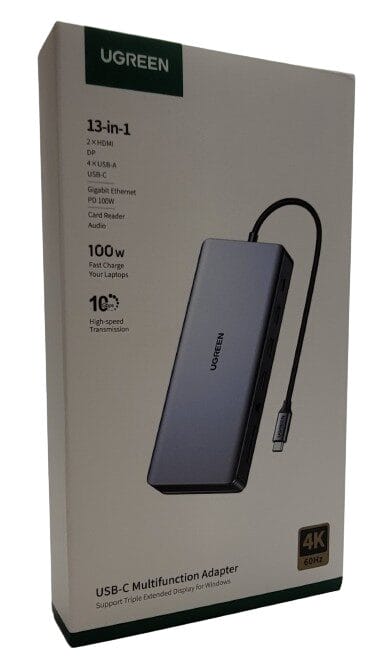

Image shows the outer box of the UGREEN Revodok Pro 313.
Outer Packaging – Image Source – My Helpful Hints (Subject to Copyright)

Inside the box you’ll find the following: 1x Adapter, and 1x Multi-Lingual User Guide.

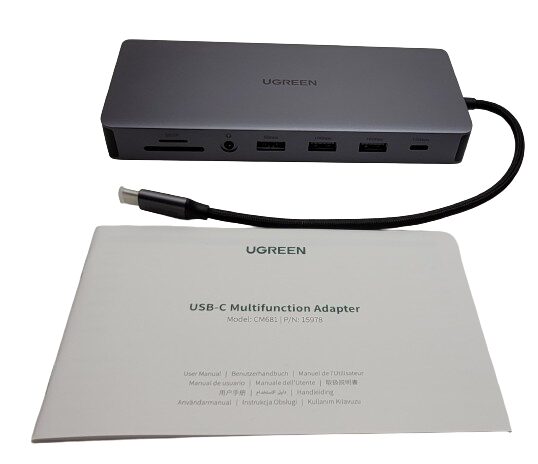

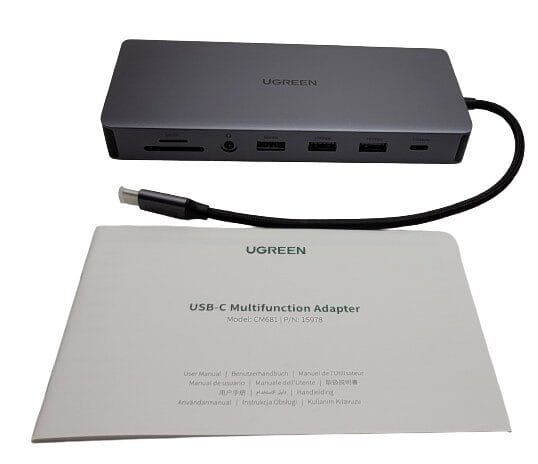

Image shows the included contents in a laid out position.
Contents Image – Image Source – My Helpful Hints (Subject to Copyright)

If you don’t have any USB-C ports on your laptop or TV, you can purchase a UGREEN USB to USB C Adapter, which still supports PD fast charging, 5Gbps data transfer too.

UGREEN Revodok Pro 313.

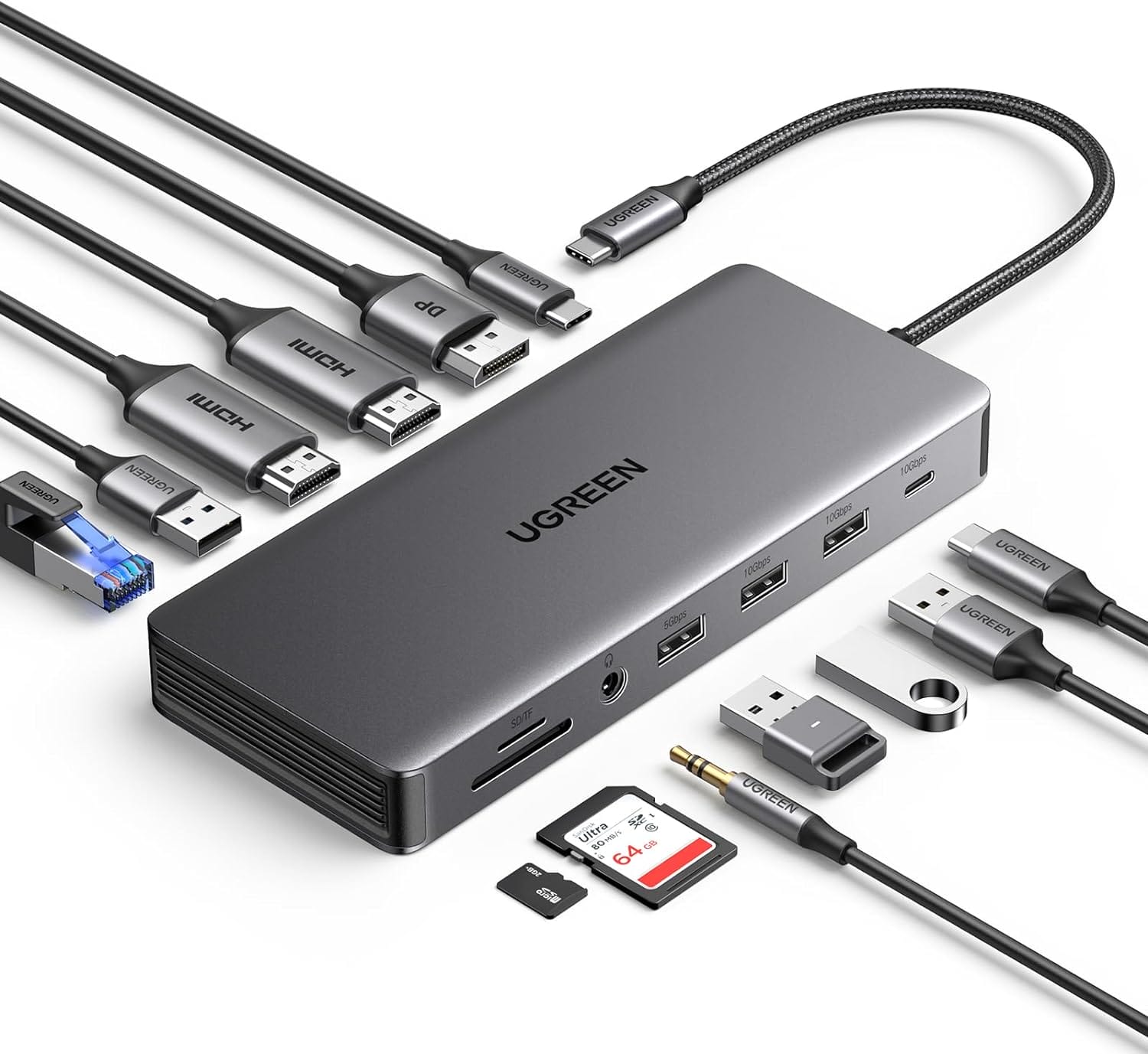

The UGREEN Revodok Pro 313 measures 165mm x 70mm x 20mm and weighs 235G. The outer casing is made from aluminium, which not only adds strength, but also helps with heat too. You get a 24.0cm built-in USB-C braided cable too, which if you’re used to UGREEN products, you’ll know it’s of the highest quality.

Image shows the UGREEN Revodok Pro 313 in my left hand.
Product Image – Image Source – My Helpful Hints (Subject to Copyright)

Ports.

The Revodok has 13 separate ports. I’ll tell each port and what they’re able to achieve below.

  • Ethernet: You get a single RJ45 port on the end of the Revodok. Supporting 10/100/1000Mbps auto-negotiation, so you’re able to use your ultra-fast internet connection.
  • USB-A: You get 4 USB-A ports. You’re able to enjoy transfer rates of up to 5GBps on two of the USB-A ports, and 10GBps on the other two USB-A ports, or use to expand on your USB devices such as a computer mouse, keyboard, etc.
  • USB-C: A single USB-C port allows 10GBps file transfer, the other USB-C port can also be used for 85W pass-through (100W in and 85W out) Power Delivery 3.0 (PD 3.0).
  • HDMI: You get 2 HDMI ports, both HDMI ports allow for a 4K@60HZ resolution. (The video output resolution depends on the laptop’s video bandwidth, the HDMI cable being used, and the maximum resolution supported by the display device.
  • DP: You get a single DisplayPort which supports a 4K@60Hz resolution. (The video output resolution depends on the laptop’s video bandwidth, the DP cable being used, and the maximum resolution supported by the display device.
  • Audio: You get a single 3.5mm audio jack, ideal for microphones, earphones and speakers.
  • Card Slots: You get both a single SD Card and TD Card slot. Supporting transfer rates of upto 104MB/s.

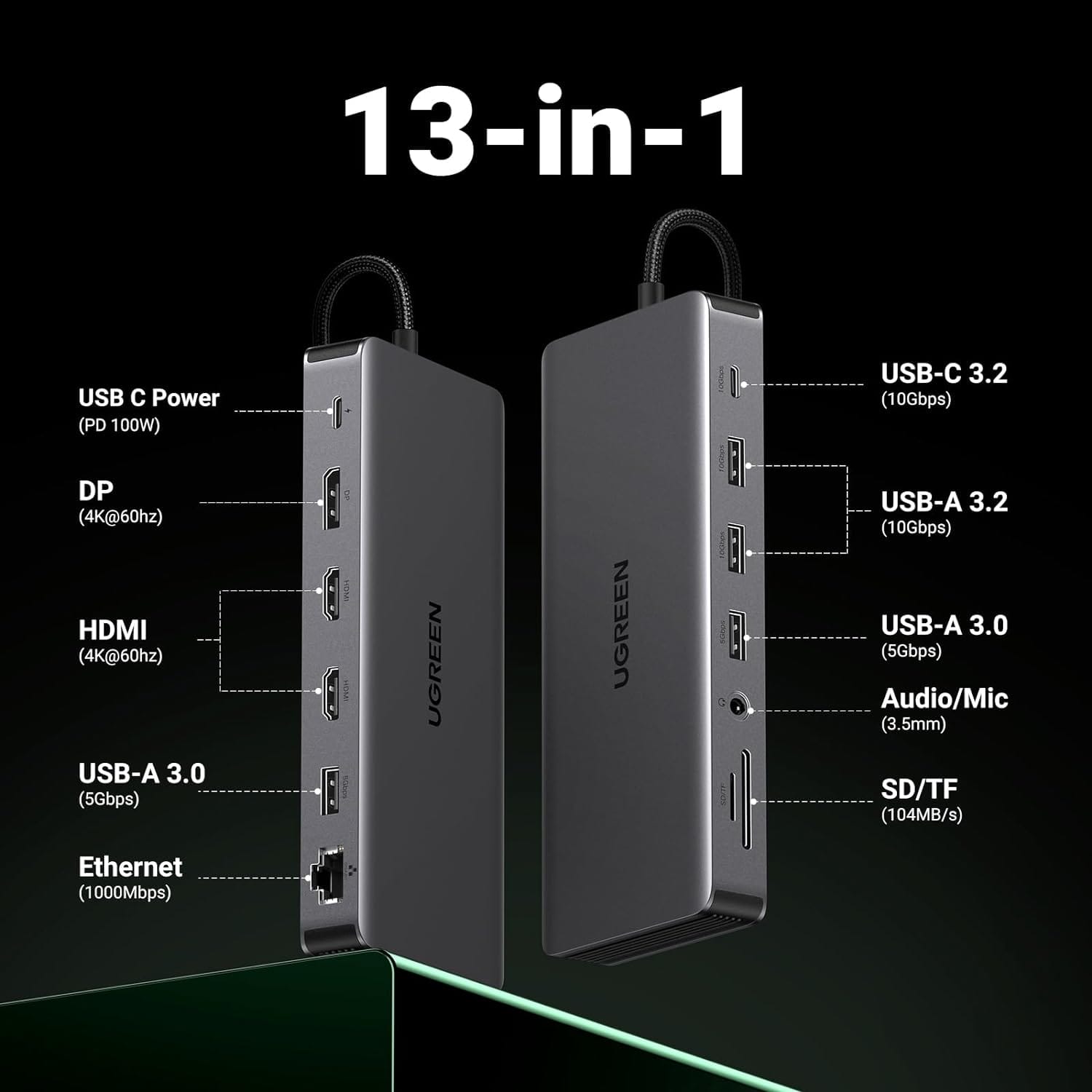

Image shows the ports of the UGREEN Revodok Pro 313.
Revodok Pro 313 Ports Image – Image Source – UGREEN (Subject to Copyright)

The UGREEN Revodok Pro 313 is compatible with Windows/macOS and Linux operating systems.

Display.

You get two display modes for Windows. The first is duplicate mode, which itself has two display options. The first allows once screen to mirror the source screen, and another three screens can display a different image to the source. The second allows two screens to display two images and the third to display a different display altogether. You also can use extend mode, and enjoy 4 different display screens (one is the source, three are additional monitors). Simply press the Windows key and P simultaneously to select your display mode.

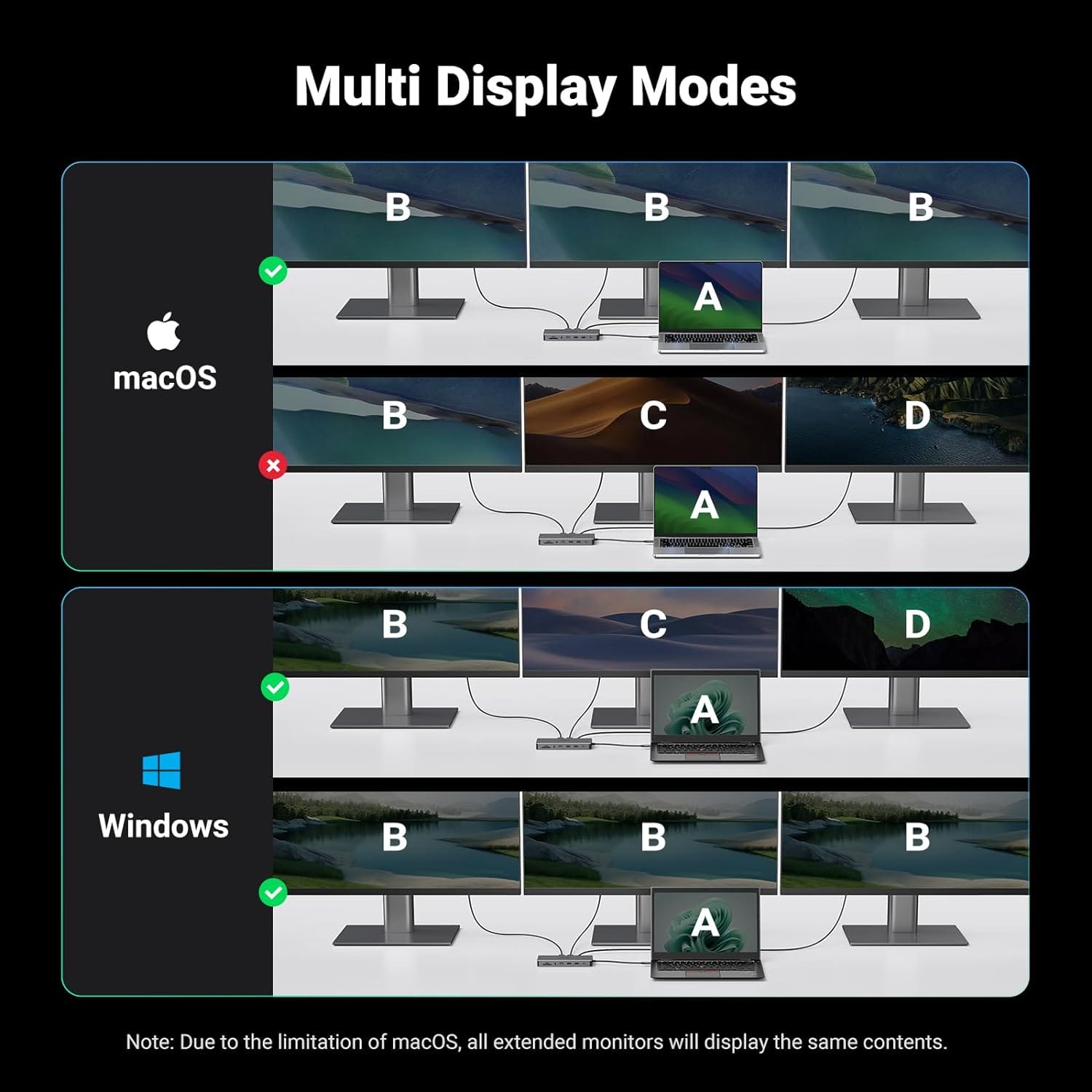

Image shows the display screen capabilities of the UGREEN Revodok Pro 313.
Display Mode Image – Image Source – UGREEN (Subject to Copyright)

For macOS press the Apple icon > System Preferences > Displays > check the “Mirror Displays” option. The macOS is more limited compared to Windows, and all extended monitors will display the same content.

Technical Specifications.

  • Brand: UGREEN
  • Model: Revodok Pro 313
  • Manufacturer Code: CM681
  • Manufacturer Reference: 15978
  • EAN: N/A
  • ASIN: B0C1Y8RPG7
  • Input: 1x USB-C
  • Output: 2x HDMI, 1x DP, 4x USB-A, 1x USB-C, 1x RJ45, 1x SD Card Slot, 1x TF Card Slot
  • Video: HDMI Single display up to 8K@30Hz/4K@60Hz, dual display up to 4K@60Hz
  • USB: USB-A/USB-C Support transfer rate of up to 5Gbps
  • Power Supply: Supports PD 3.0, 85W max
  • Compatible Systems: Windows/macOS/Linux
  • Compliance: CE, UKCA, FCC

Conclusion.

I’m really impressed with the UGREEN Revodok Pro 313. To have so many different ports available for a single USB-C port is amazing. You get so much choice, I especially like the inclusion of the 3.5mm audio jack too, opens up so many opportunities for users. Overall, a great piece that feels high-quality too, another fantastic UGREEN product.

If you’d like to purchase this item, please check out the purchasing options below. The RRP for this item is £129.99.

UGREEN Direct


Multi-Currency


Klarna Available


Direct Purchase

Amazon


Prime Delivery

Best Option


Stock Available


5-Star Rating

eBay


Free Delivery


More Expensive


Low Stock

Product sample provided by UGREEN in exchange for a detailed, unbiased review.
